TOA F-1300BTWP 5" Coaxial 30W Wide Dispersion Weather Resistant Speaker, Black

OUR PART #: F1300BTWP MFR #: F-1300BTWP

Copied to clipboard

The black F-1300 outdoor speaker is designed to provide high quality sound and reliable performance for restaurants, retail and audio/visual applications. ...Read more

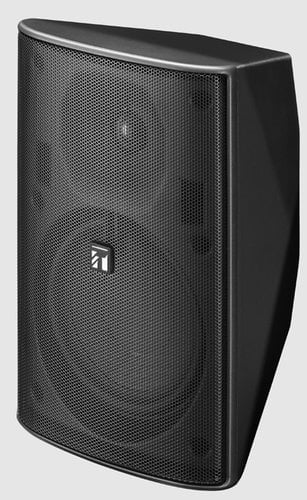

TOA F-1300BTWP 5" Coaxial 30W Wide Dispersion Weather Resistant Speaker, Black Image 1
TOA F-1300BTWP 5" Coaxial 30W Wide Dispersion Weather Resistant Speaker, Black
Our Price: $230.90
List Price: $285.80
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The black F-1300 outdoor speaker is designed to provide high quality sound and reliable performance for restaurants, retail and audio/visual applications. Features include two-way bass-reflex design, high impact polystyrene enclosure with a 5" low frequency driver and dome tweeter. Includes a versatile wall/ceiling-mount bracket for easy installation.

Features:

  • Compact box speakers for music and voice paging distribution
  • Excellent sound quality
  • 70V, black
  • Octagonal horn design for smooth coverage
  • Extruded cabinet design improves low frequency performance
  • Individual protection circuit on each component
  • Paintable grille and enclosure
  • Wall/ceiling-mount bracket included
  • Optional board, cluster and pole-mount brackets
  • Optional subwoofers, model HB-1, FB-100 or FB-120
  • Five year warranty
  • Splashproof rating of IPX4

Specifications:

  • LF Driver: 5” cone woofer
  • HF Driver: 1” dome tweeter
  • Power Handling:
    • 30W (70V transformer)
  • Dispersion: 110°H x 100°V
  • Enclosure: Bass-reflex type
  • Rated Input: 30W (high impedance)
  • Power Handling Capacity
    • Continuous pink noise: 50W (low impedance)
    • Continuous program: 15W (low impedance)
  • Rated Impedance: 8Ω
    • 100V line: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1W)
    • 70V line: 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W), 10kΩ (0.5W)
  • Sensitivity: 90dB (1W @ 1m) at installation in 1/2 free sound field
  • Frequency Response: 80Hz - 20kHz, -10dB at installation in 1/2 free sound field
  • Crossover Frequency: 2kHz
    • Directivity Angle:
    • Horizontal: 110°, Vertical: 100°
  • Speaker Component:
    • Low frequency: 13cm (5") cone-type
    • High frequency: 25mm (1") dome tweeter
  • Input Terminal: Push-in terminal
  • Finish:
    • Enclosure: HIPS, black
    • Punched net: Surface-treated steel plate, black, paint
    • Joint bracket, wall bracket: Steel plate, t1.6, black, paint
    • Speaker bracket: Die-cast aluminum, black, paint
  • Dimensions: 162 (W) × 250 (H) × 161 (D) mm (6.38" × 9.84" × 6.34")
  • Weight: 3.6kgs (7.94lbs) (including the supplied brackets)
