Fujinon Inc XA17X7.6BRM-M58B
Fujinon Lens, 17x w/CAC for Panasonic P2HD

OUR PART #:  XA17X7.6BRM-M58B

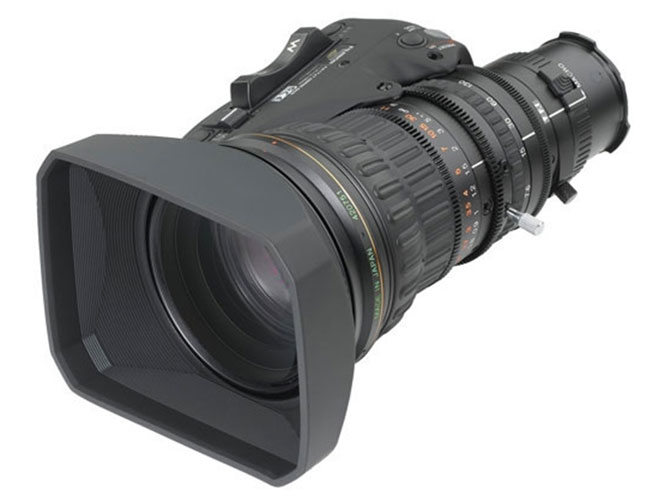

The Panasonic XA17x7.6BRM by Fujinon is a high quality 17x 2/3" lens designed to be used with the P2HD line of Panasonic cameras, including the AG-HPX500.
Learn More

Call for price! Not available online.
List Price: $9,995.00

Similar Products

The Panasonic XA17x7.6BRM by Fujinon is a high quality 17x 2/3" lens designed to be used with the P2HD line of Panasonic cameras, including the AG-HPX500. Known for their high build quality and precision optics, Fujinon lenses have become the industry standard for professional video applications all over the world. The focal-length range is 7.6 to 130mm with a minimum object distance of 0.6 meters; or about 2 feet.

In addition to unmatched image quality, the lens is also equipped with a wide array of extra features, including both DigiPower servo controls and QuickZoom.

Features:

  • QuickZoom Technology - The lens has added capability when zooming, using the QuickZoom switch. At the touch of a button, the lens can move to full telephoto in less than a second. This provides a no-hassle way of verifying focus.
  • High Definition Ready - Many high definition cameras are hamstrung by insufficient optics. Electronic News Gathering (ENG) lenses are traditionally built to accommodate standard definition video cameras. This lens is designed specifically with high definition in mind. The optics increase fidelity, making sure HD footage is crystal clear.

Specifications:

  • Camera Format 2/3 "
  • Zoom Ratio 17X 17X zoom ratio
  • Extender  No
  • Maximum Relative Aperture  1:1.8 (7.6 ~ 105 mm) 1:2.4 (130 mm)
  • Maximum Photometric Aperture T-No.  T1.9~T3.8 T1.9 ~ T3.8
  • Minimum Object Distance from Image Plane  0.84m
  • MOD from Front of Lens  0.6 m
  • Object Dimensions at MOD  7.6 mm 738 x 415 mm 137 mm 43 x 24 mm
  • Angular Field of View  7.6 mm 64° 30 x 39° 03 130 mm 4° 13 x 2° 23
  • Filter Size  82 mm P=0.75
  • Size (Diameter x Length)  85 X 204 mm
  • Weight (w/o hood)  1.53kg / 3.4 lbs
