Nexo PS8U 8" 2-Way Full Range Loudspeaker

OUR PART #: PS8U MFR #: PS8U

Copied to clipboard

The Nexo PS8U is a 2-way passive 8ohm loudspeaker that delivers bi-amped performance from a single amplifier channel. ...Read more

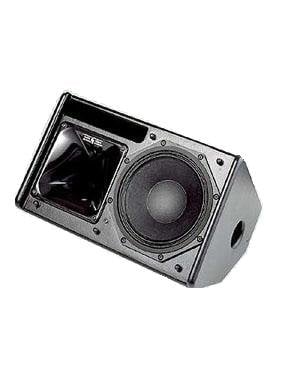

Nexo PS8U 8" 2-Way Full Range Loudspeaker Image 1
Nexo PS8U 8" 2-Way Full Range Loudspeaker
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Nexo PS8U is a 2-way passive 8ohm loudspeaker that delivers bi-amped performance from a single amplifier channel. Its highly flexible design is by a proprietary constant directivity asymmetrical dispersion horn, easily rotated in four positions by the user. The horn's unique progressive horizontal (50° to 100°) and vertical (+25°, -30°) dispersion can be adapted for vertical or horizontal PA usage or wedge monitoring.

Applications:

  • Near-field portable or installed PA for clubs, A/V, Houses of Worship, Theater, Broadcast, etc.
  • High quality stage monitoring for clubs, A/V, theater, broadcast, etc.
  • Fill-in system in conjunction with larger NEXO systems.

Nexo PS8U Features:

  • High power system (125dB Peak SPL @ 1m) with 8" LF and1" HF low magnetic emission Neodymium drivers for light weight (7.5kg, 16.5 lbs) and negligible magnetic leakage
  • Rotatable asymmetrical horn and unique cabinet architecture ensure versatility; user adaptable for both PA and stage monitoring applications
  • Two-way passive 8 ohm design uses a single amplifier channel for simpler installation and lower cost
  • Sophisticated control electronics ensure reliable, linear operation
  • Available with a full range of mounting and flying accessories

Nexo PS8U Specifications:

  • Components: LF – 8" Shielded Neodymium 8ohm driver; HF– 1" Shielded Neodymium throat driver + Low Distortion, constant directivity asymmetrical dispersion horn
  • Dimensions: 16" H x 9-7/8" W x 5-5/8" D
  • Weight: 16.5 lbs.
  • Connectors: 2x NL4MP SPEAKON 4-pole
  • Construction: Baltic Birch Ply finished with textured polyurethane black coating
  • Frequency Response: 69 Hz – 19 kHz +/- 3dB
  • Usable Range @ -6dB: 62 Hz – 20 kHz
  • Sensitivity 1W @ 1M: 96 dB SPL Nominal; 94 dB SPL Wide band
  • Nominal Peak SPL @ 1M: 122 to 125 dB Peak
  • HF Dispersion: 50° to 100° Hor. x 55° Vert. Rotatable Horn, 4 positions
  • Crossover Frequencies: 2.5 kHz passive
  • Nominal Impedance: 8 ohms
