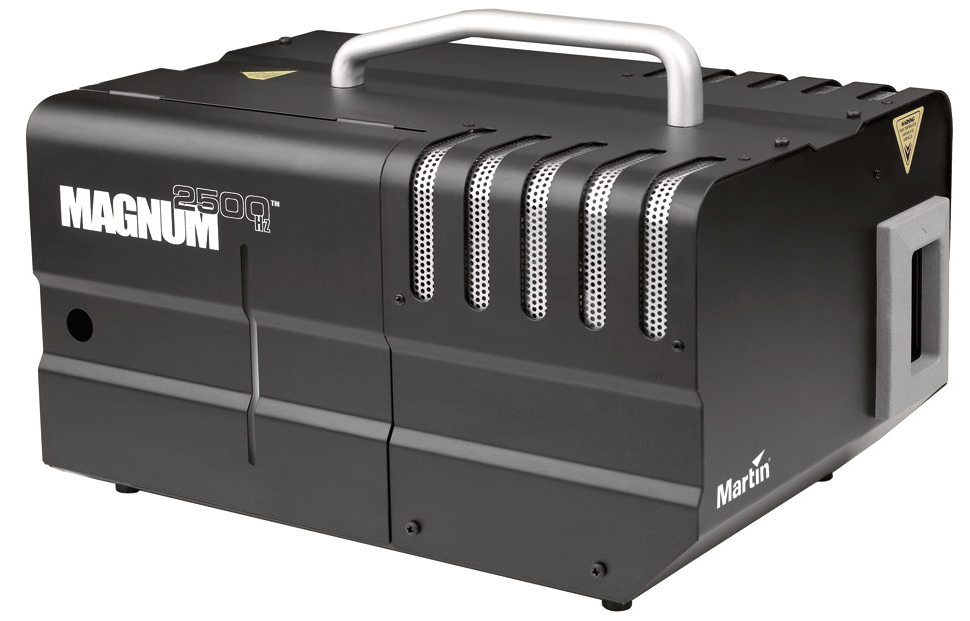

Martin Professional Magnum 2500 Hz
Haze Machine

OUR PART #:  MAGNUM-2500-HAZER

Martin Professional's Magnum 2500 Hz, an easy-to-use, plug-and-play hazer suitable for bars...
Learn More
Sale Price: $519.37
List Price: $853.00
You save 39%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional Magnum 2500 Hz
Qty:
In Stock
Similar Products

Martin Professional's Magnum 2500 Hz, an easy-to-use, plug-and-play hazer suitable for bars, clubs, DJ’s, and smaller venues, comes with a large 3.8 liter fluid container and optional DMX (sold separately - consult your Sales Pro for more information). It also works great in an installation setting.

Calibration factors for the Magnum 2500Hz and the Jem Pro Haze Fluid have been developed for comparing measured theatrical smoke, fog and haze concentrations with the Peak Guidance levels required and developed for the Actors' Equity Association.

Martin Professional Magnum 2500 Hz Includes:

  • Martin Professional Magnum 2500 Hz Unit
  • User manual
  • 1.5 m power cable, IEC, w/o plug
  • Container: 3.8 liter
  • Remote control

Martin Professional Magnum 2500 Hz Features:

  • Optional DMX interface (sold separately)
  • Timer and output level remote control
  • Internal remote control storage
  • Continuous output
  • Output and density level control
  • 2500 mÂł/min fog output
  • Integrated fan
  • Linkable - up to 4 units can be operated at the same time with one remote.DMX - unlimited channels are available
  • 900 W heat exchanger
  • 3.8 liter fluid capacity
  • Fluid-out sensing

Martin Professional Magnum 2500 Technical Specifications:

  • Physical:
    • Dimensions (LxWxH): 18.0" x 11.3" x 11.1" (455 x 285 x 280mm)
    • Dry Weight: 26.3 lbs (11.9 kg)
  • Performance:
    • Coverage volume: 2500 m3 per minute
    • Operating time: Continuous, automatic level adjustment
    • Warm-up time (approx.): 6 - 8 minutes
  • Control and Programming:
    • Control options: DMX (optional accessory), Timer
    • Remote Control options: Instant or timer-controlled variable output
    • DMX channels: 1 Protocol: USITT DMX512/1990
  • Construction Housing: Steel & aluminum Heat exchanger: 900 W, directthermal protection
  • Fluid System:
    • Fluid pump: Oscillating piston, high pressure
    • Onboard fluid capacity: 3.8 liter
    • Fluid consumption at peak output: 10.5 ml/min
  • Installation Orientation: Floor
    • Connections:
      • Power connection: 3-pin IEC male socket DMX (with optional DMX interface): 3-pin and 5-pin XLR sockets
      • Remote control: RJ-45
  • Electrical:
    • AC power (US models): 110-120 V nominal, 60 Hz
    • Main fuse (110-120 V power): 10 A
  • Typical Power and Current:
    • US models:
      • 110 V, 60 Hz: 869 W, 7.9 A
      • 115 V, 60 Hz: 950 W, 8.5 A
      • 120 V, 60 Hz: 1034 W, 8.61 A
        Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  • Thermal
    • Maximum ambient temperature (Ta max.): 104° F (40° C)
    • Exterior surface temperature, steady state: 104° F (40° C)
    • Max. nozzle temperature: 392° F (200° C)
  • Approvals
    • EU safety: EN 60 335-1 (1995) EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 50366
    • ETL approvals (cETLus):
      • UL Std.998
      • CAN/CSA Std. C22.2 No 104-01
    • Immunity: EN 61000-6-1, EN 61000-4-2, EN 61000-4-3
      Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical haze with the Magnum 2500Hz™ and JEM Pro Haze Fluid™
      [CE] [ETL C US Intertek]
