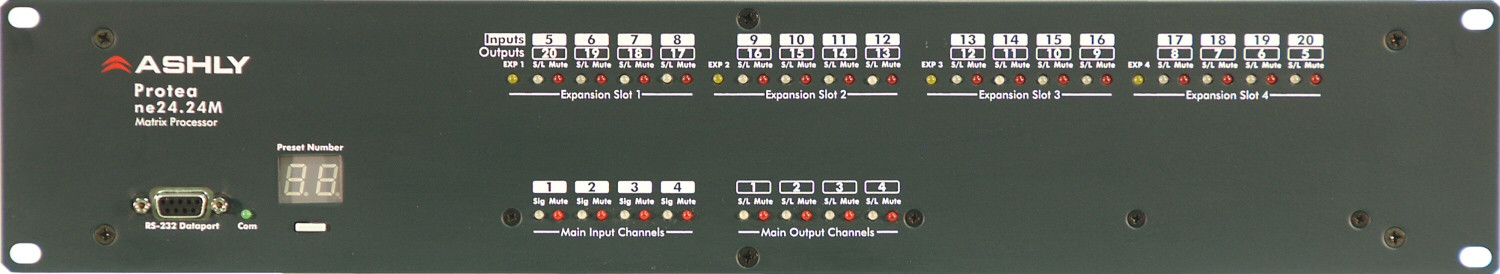

Ashly’s NE-Series Protea ne24.24M digital signal processor. This Network Enabled (NE) processor offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed.

The ne24.24M Matrix Processor uses modular expansion cards to provide up to twenty-four channels of audio matrixing and processing. The base unit offers a four-input/four-output configuration. Each input and output expansion card has an individual DSP processor allowing you to expand the base unit’s total inputs or outputs four channels at a time. These cards are easily installed in the field without the need to reprogram the device.

Matrixing allows you to route any input to any output and control individual levels once they have been assigned. Fixed path architecture and extensive processing power per channel will reduce the amount of time it takes to set up your system. All programming is accomplished using Ashly’s Protea NE Software on a PC platform. No front panel controls and multi-level software security assures you a tamperproof audio system. Input channel processing blocks include Mic Preamp with Phantom Power, Gain, Delay, fifteen EQ Filters, Gate, Autoleveler and Ducker. Inputs may be configured as either mic or line level. Output channel processing blocks consist of a Cross Point Mixer, HPF/LPF, Delay, fifteen EQ Filters, Gain and Limiter. The cross point mixer in the output section allows you to route any input to any output at any level and mute any input at any output without affecting the true input configuration. The HPF/LPF block offers Bessel, Butterworth and Linkwitz-Riley filters with 12, 18, 24 and 48dB/octave slopes.

Whether you are designing or installing a system for corporate boardrooms, restaurants, courtrooms, houses of worship, left/center/right theatres, auditoriums or conference centers, the Protea ne24.24M will more than satisfy your requirements for any zoned system requiring input/output matrixing with signal processing.

Ashly ne24.24M Features:

  • 10/100 Ethernet and RS-232 computer interface is standard
  • Extensive DSP Available
  • Easy and intuitive user interface
  • Mic/Line inputs
  • 24-bit A/D–D/A audio resolution
  • 24-bit/150 MHz DSPs
  • Up to 24 channels of audio processing
  • 4x4 base unit configuration
  • Expand inputs or outputs 4 channels per module
  • Modules easily field installable
  • Euroblock connectors for audio, preset recall, DC remote level control and data in/out
  • 31 preset locations
  • Four dedicated remote controls for level, preset recall and programmable functions
  • Third Party Control Friendly
  • Input and output metering viewable in dBu
  • Multi-level Security
  • Five year worry-free warranty
  • Safety/Compliance: (FCC, CE, RoHS)
  • Rear panel:
    • 10/100 Ethernet port
    • RS-232 Port
    • Euroblock inputs
    • Euroblock outputs
    • Remote level control

Ashly ne24.24M Specifications:

  • Input:
    • Active Balanced, 18 kOhm
    • Max Input Level: +20 dBu
    • Input Gain Range: -50dB to +12dB, polarity select
  • Output:
    • Active Servo-Balanced, 112 Ohm
    • Max Output Level: +20dBu
    • Output GainRange: -50dB to +12dB, polarity select
    • FrequencyResponse: 20 Hz-20kHz, +/- 0.25 dB
    • THD: < 0.01% @1kHz, +20dBu
    • Dynamic Range: >110dB (20 Hz-20 kHz) unweighted
    • Output Noise:
  • Mic Preamp:
    • Gain: 0dB, +20dB, +40dB, +60dB
    • Phantom Power:+48VDC, 9.6mA max, soft on/off
    • Equivalent Input Noise: -128 dBu,20-20kHz, 50 Ohm source
  • Signal Generator:
    • White Noise, Pink Noise: 0dB
  • Eq Filters:
    • Number: 15 per Input, 15 per Output
    • Selectable As:
    • Parametric
      • Bandwidth: 1/64th Octave to 4 Octave
      • Range: +15/-30dB, 0.1 dB increments
      • Frequency Resolution: 1Hz
    • Low-Shelf
      • Slope: Selectable 6 or 12dB/Octave
      • Frequency Range: 20Hz to 2KHz
      • Range: +/-15dB, 0.1dB increments
    • High-Shelf
      • Slope: Selectable 6 or12dB/Octave
      • Frequency Range: 3.886KHz to 20KHz
      • Range: +/-15 dB, 0.1 dB increments
    • All-Pass:
    • Type: Second Order (-180 degrees)
    • Frequency Range: 20Hz to 20KHz
  • Crossover Filters:
    • High PassFilter:
      • Type: Linkwitz-Riley, Bessel, Butterworth
      • Slope: 12,18, 24 and 48dB/Octave
      • Frequency Range: Off to 20KHz, 1Hz increments
    • Low Pass Filter:
    • Type: Linkwitz-Riley, Bessel, Butterworth
    • Slope: 12,18, 24 and 48dB/Octave
    • Frequency Range: Off to 20Hz, 1Hz increments
  • Delay:
    • Input Maximum Delay: 682.5ms
    • Increment: 20µs
    • Output Maximum Delay:682.5ms
    • Increment: 20µs
  • Gate:
    • Threshold: -80 to +20dBu, 1dBu increments
    • Floor: Off, -80 to 0dBu, 1dBu increments
    • Attack: 2, .5, 1, 2, 5, 10, 20, 50ms/dB
    • Release: 5, 10, 20 50, 100, 200, 500, 1000ms/dB
  • Autoleveler:
    • Target Level: -40 to +20dBu, 1dBu increments
    • Ratio: 1.2:1, 1.5:1, 2:1, 3:1, 4:1, 6:1, 10:1
    • Hold Time: 0, 1, 2, 3, 4, 5,6Sec
    • Threshold Below Target -30 to 0dB, 1dB increments
    • Gain IncreaseRate: 5, 10, 20 50, 100, 200, 500, 1000ms/dB
    • Gain Decrease Rate: 5, 10, 20 50, 100, 200, 500, 1000ms/dB
  • Ducker:
    • Trigger Threshold: -80 to +20dBu,1dBu increments
    • Ducker Depth: Off, -30 to 0dB, 1dBu increments
    • Ducker Release: 5, 10, 20 50, 100, 200, 500, 1000ms/dB
  • Cross Point Mixer:
    • Gain: -Inf, -50 to +12dB, 1dB increments with Mute
  • Compressor/Limiter:
    • Threshold: -20dBu to +20dBu, 1dB increments
    • Ratio: 1.2 :1 to Infinity (1.2, 1.5, 2, 3, 4, 6, 10, 20, Infinite:1)
    • Attack: 0.5 ms to 50 ms per dB
    • Release: 10 ms to 1 sec. per dB
  • Processor:
    • Input A/D: 24 bit
    • Output D/A: 24 bit
    • Processors: 24 bit signal, 48 bitf ilters, 56 bit accumulator
    • Sample Rate: 48 kHz
    • Propagation Delay: 1.46 ms
  • Other:
    • Power Requirements: 90 - 240VAC, 50-60Hz, 40W
    • ShippingWeight: 13 lbs (5.9 kg) max
    • Dimensions: 19" L x 3.5" H x 8.5" D (483 x 89 x 216 cm)
    • Connections: Euroblock
    • Environmental: 40-120 deg. F, (4-49 deg, C) non-condensing
  • General Purpose Logic Output Option:
    • Output Source Current Per Channel: 10mA
    • OutputVoltage: +12VDC
    • Output Supply Current: 100mA
    • Output Sink Current Per Channel: 100mA
    • Preset Recall
    • Data in and outports
