130w @ 8ohms Weatherproof Amp


The Technomad PowerChiton series of weatherproof amplifier modules represent a new approach to outdoor audio systems.
Learn More
Our Price: $1,192.06
List Price: $1,402.43
You save 15%!
Write the first review.
Please call for availability.

Related Products

The Technomad PowerChiton series of weatherproof amplifier modules represent a new approach to outdoor audio systems. Combining a high performance, passively cooled amplifier with a IP66 rated, low-profile enclosure, the PowerChiton offers the system installer or designer a new solution for the problems of distributed outdoor audio system design.

Each PowerChiton monoblock amplifier module is capable of powering an @ two-Ohm load and therefore can drive one, two, or three eight-Ohm loudspeakers.  Due to the efficient design of the amplifier module, only a passive radiator is needed for cooling and there are no moving parts in the module, reducing failure points.

While they were optimized for use with the Technomad Vienna, Noho and Berlin weatherproof loudspeakers, the PowerChiton can be used with any eight or four ohm loudspeaker.

The PowerChiton base model ships with two line-level inputs, which can be independently adjusted by an internal mixer.  The PowerChiton has available expansion options enabling it to work on an Ethernet network (accepting any bit-rate MP3 format audio for VOIP or Audio-Over-IP applications), RDL™ Twisted Pair installation, or FM wireless distribution system.  When combined with Technomad’s wireless transmitter, the PowerChiton system provides an unrivaled way to distribute audio and amplify it at maximum quality.

The PowerChitons can be wall-mounted with the included mounting feet. Pole-mount adaptors are also available as well as hardware allowing the modules to be installed on the back of the associated Technomad loudspeakers.

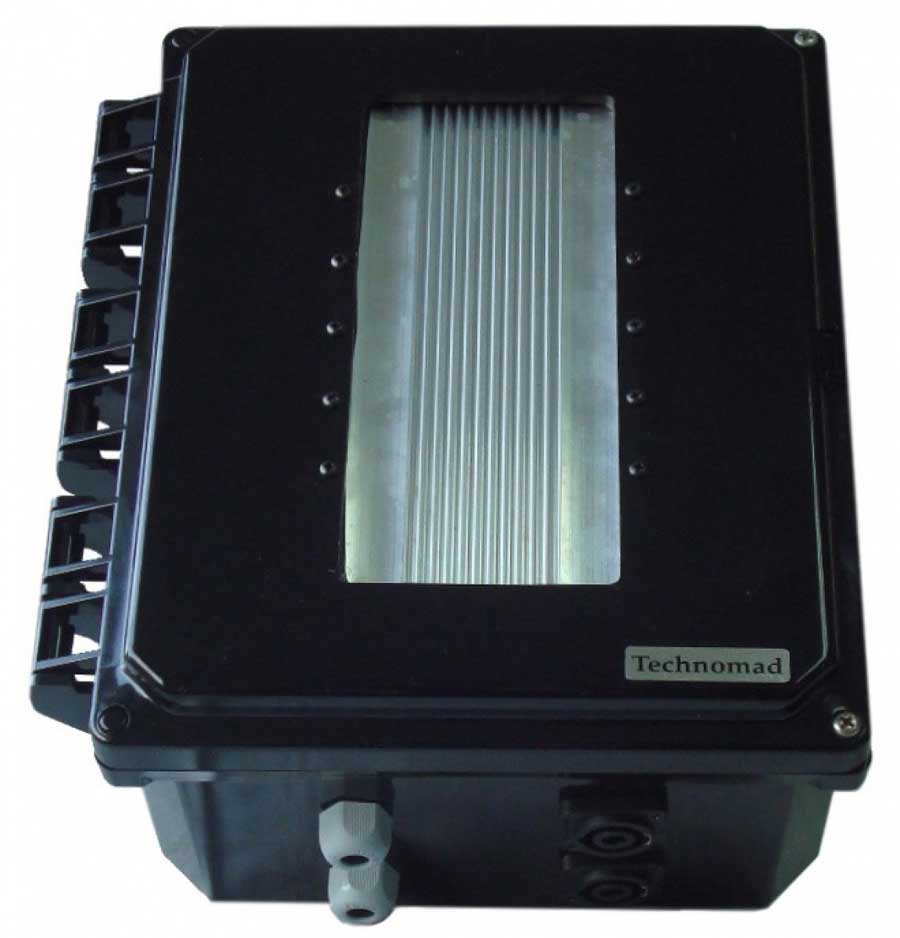

NOTE: Image is for illustrative purposes only and may not accurately represent this specific model.

Technomad POWERCHITON1 Features:

  • Fully weatherproof
  • Fuse-protected amplifier unit
  • Compact and durable
  • Optional pole-mount
  • Two line-level inputs, volume of each adjustable via internal mixer
  • Expandable with optional Ethernet, wireless receiver, or twisted pairaudio interfaces.
  • UV stable enclosure
  • Highly efficient mono power amplifier unit
  • Integral two-line mixer, accepts balanced audio signals

Technomad POWERCHITON1 Specifications:

  • Max. output power @ 1% THD+N
    • 130w @ 8Ohms
    • 250w @ 4Ohms
    • 300w @ 2.6Ohms - Ideal for powering up to three Technomad Vienna Loudspeakers
  • Physical:
    • Cabinet: Polycarbonate (gray/black)
    • Flame rating: UL94
    • Outdoor UV rating: UL tested
    • IP rating: IP66
    • 8.50" x 7.36" x 5.20"
  • General:
    • Power input: 6’ 12/3 AWG pigtail (110-120 60 Hz or 220-240 50 Hz VAC)
    • Audio input: terminal block, internal – compression fitting provides weatherproof cable access
    • Network Connection (optional) : RJ45 Ethernet jack
    • Audio output: 2x NL4MP Speak-On
