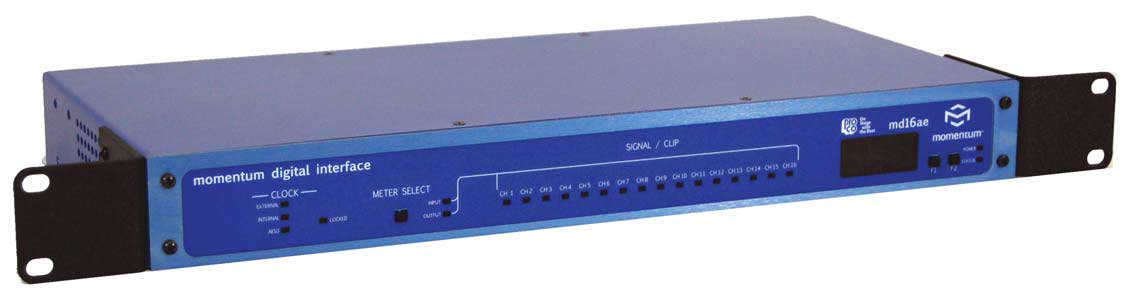

Pro Co MD16AE
16-Channel AES3 Audio Converter


Call for price!

The Momentum md16ae is the first digital interface component of Pro Co’s digital snake system. It provides conversion to and from Momentum’s digital audio and AES3. The 16 channel, bi-directional format allows users to interface with many AES capable devices, including digital consoles.

The md16ae reduces system latency by removing analog to digital, and digital to analog conversions. It performs the functions of two input and two output modules. Gigabit Ethernet is standard on all Momentum products and all components are Power over Ethernet (PoE) 802.3af compliant. All functions are accessible through the front panel or PC software.


  • Converts Momentum Digital Audio to/from AES3
  • 16 in / 16 out configuration
  • Allows for integration with popular digital consolesand AES compatible equipment
  • 24 bit Digital Audio with Selectable 48K or 98Ksampling
  • Front mounted control panel
  • Input and Output signal/clip LEDs for all 16 channels
  • Selectable Internal, External, or AES3 clock Source
  • Gigabit Ethernet Architecture
  • Power over Ethernet (PoE) 802.3af compliant
  • Available with rack mount kit or optional stage boots


  • Resolution: 24 bit, 48/96 kHz
  • Digital Audio I/O: 16 inputs, 16 outputs
  • Digital Audio Connectors: Tascam® Compatible DB25Connectors
  • Clock Sources: External (via Word Clock In); MomentumClock, or AES3 (via CH1 and CH2 of the AES3 input);
  • External Clock Interface: BNC Word Clock In and Out
  • Word Clock Input Sensitivity: 0.2 to 5Vp-p
  • World Clock Output: 3.3Vp-p
  • Impedance: 75 ohms/70K ohms
  • Jitter Attenuation: Below AES3 Jitter Function Mask
