Yorkville E10
Elite Series 10" 2-Way 325 Watt (8 Ohms) Loudspeaker

OUR PART #:  E10-YORKVILLE

The two-way E10 loudspeaker is one of the members of the Elite Series of cabinets designed and built for maximum versatility in multiple applications.
Learn More
Our Price: $499.00
List Price: $679.00
You save 27%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Yorkville E10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

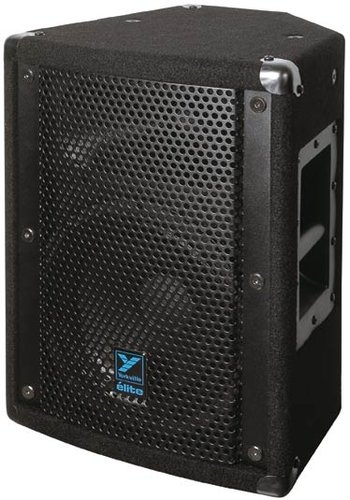

The two-way E10 loudspeaker is one of the members of the Elite Series of cabinets designed and built for maximum versatility in multiple applications. One of the best sounding ultra-compact cabinets in the market, the E10 is a loudspeaker cabinet design. Ideal for any small PA rental house, installer or sound company, these loudspeakers may replace a number of specific application cabinets in any inventory.

The E10 is loaded with 100° x 25° ABS Waveguide horn assembly. A modified trapezoidal shape and recessed input jack panel and handle means the E10 cabinet can function perfectly as a wedge monitor or front-of-house loudspeaker. Unlike some 'multi-function' loudspeakers currently in the marketplace, great care has been taken in the design process to ensure that élite cabinets will perform without compromising functionality as either a monitor or a front-of-house enclosure. Neither application was considered as an afterthought.

Integrated stand mount adapters and flyware means the E10 can be utilized in any permanent install or touring application. In addition, the modified cabinet shape means the élite E10 can be installed much closer to vertical surfaces and in some cases, under balconies in tight locations, and can be arrayed in a much tighter less obtrusive cluster.

When used with the EP10 processor, the E10 can be easily used with any Elite Series subwoofer.

Yorkville E10 Specifications:

  • System Type: Two Way
  • Active or Passive: Passive
  • Program Power (Watts): 325 Watts (650 Watts peak, 250 Watts continuous)
  • Biampable: No
  • Nominal Impedance (Ohms): 8
  • Sensitivity (dB @1Watt/1m): 100
  • Max SPL (dB): 123
  • Frequency Response (Hz +/- 3db): 65 - 18k
  • Crossover Frequency (Hz): 2900
  • Driver Configuration: 10 inch / 1 inch
  • HF Driver(s): 1 inch throat (1 inch Titanium Diaphragm)
  • HF Horn: ABS Waveguide
  • HF Dispersion (°H x °V): 100 x 25
  • HF Protection: CTL™
  • LF Driver(s): 10 inch (2 inch voice coil)
  • Inputs - 1/4" Jacks: 2
  • Inputs - Speakon 4-pin: 2
  • Flying Hardware: 3/8 inch x 3 (2 Top / 1 Back)
  • Bar Handles: 1
  • Pole Mount Adapter (1 3/8"-3.5cm): Yes
  • Enclosure Materials: 15mm (5/8inch) 11-ply Russian Birch
  • Grille: Perforated Metal
  • Covering / Finish: Black Ozite (Carpet)
  • Optional Covering / Finishes: Black Ultrathane Paint (E10B)
  • Processor (optional): EP10
  • Dimensions (DWH xbackW, inches): 12 x 13 x 18.5 x 5.5
  • Weight (lbs/kg): 28.2 / 12.8
