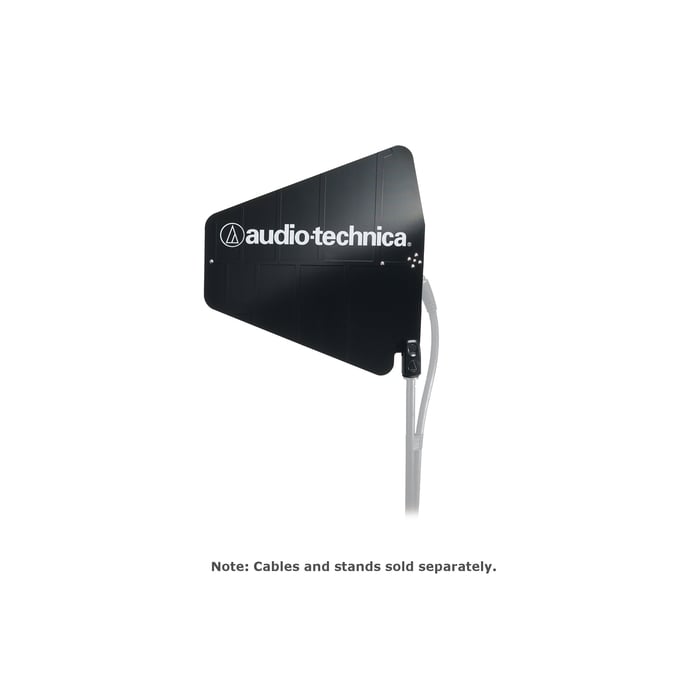

Audio-Technica ATW-A49S Single UHF Wide-Band Directional LPDA Antenna For IEM Systems Image 1
Audio-Technica ATW-A49S Single UHF Wide-Band Directional LPDA Antenna For IEM Systems
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Designed to provide enhanced signal transmission for UHF wireless in-ear monitoring (IEM) systems, Audio-technica's ATW-A49S is a wideband directional Log Periodic Dipole Array (LPDA) antenna that operates throughout a wide band range (440-900 MHz). It's a directional antenna that works great for extending the operating range and dependability of UHF wireless IEM systems used in large scale installations and stage applications. When used with an appropriate antenna combining system in a multi-system IEM application, it eliminates the necessity for multiple frequency-specific antennas.

The ATW-A49S offers support for virtually all UHF wireless IEM transmitters, providing a directional coverage pattern with a typical 90° beamwidth. It delivers approximately 6 dB of RF gain improvement over standard receiver whip antennas and is engineered to match standard 50 ohm impedance IEM transmitter outputs and receiver inputs.

It features high-quality low-loss BNC-type connectors that are physically positioned to minimize RF cable strain even when connected to large-diameter cables. Fashioned to mount to a standard 5/8"-27 microphone thread fitting, it includes an adjustable mount to enable horizontal and vertical adjustment for accurate positioning.

With its industrial-grade copper-clad epoxy fiberglass construction, it provides resistance to the effects of corrosion, UV degradation, and vibration, which allow for long life and stable performance under challenging operating conditions. The ATW-A49S comes fully assembled.

Audio-technica ATW-A49S Features:

  • Enhanced signal pickup
  • Wideband (440-900 MHz) operation
  • 6 dB RF gain improvement
  • 90 degree beamwidth
  • Rugged industrial grade copper-clad epoxy fiberglass construction
  • Low-loss BNC-BNC connector positioned to minimize cable strain

Audio-technica ATW-A49S Specifications:

  • Specifications and additional information available by clicking on the "Audio-technica ATW-A49S Datasheet" located under the "DOCUMENTATION" tab above.
