Audio-Technica AT4022 Small-Diaphragm Omni Condenser Microphone

OUR PART #: AT4022 MFR #: AT4022

Copied to clipboard

A low-profile, omnidirectional condenser recording mic, Audio-Technica's AT4022 is outstanding for use in capturing piano, acoustic guitar, and other acoustic instruments. ...Read more

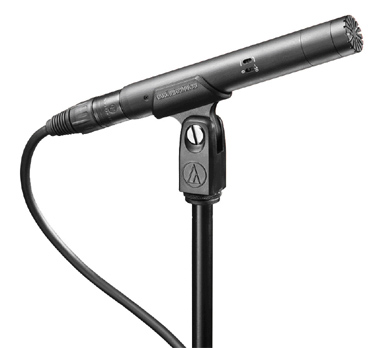

Audio-Technica AT4022 Small-Diaphragm Omni Condenser Microphone Image 1
Audio-Technica AT4022 Small-Diaphragm Omni Condenser Microphone Image 2
Audio-Technica AT4022 Small-Diaphragm Omni Condenser Microphone
Our Price: $349.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

A low-profile, omnidirectional condenser recording mic, Audio-Technica's AT4022 is outstanding for use in capturing piano, acoustic guitar, and other acoustic instruments. Its flat, extended frequency response and wide dynamic range make it ideal in both critical studio and live applications. It handles high SPLs (sound pressure levels) with ease, while its low-mass diaphragm improves transient response and reduces handling/mechanical noise transfer. Additionally, its omnidirectional polar pattern preserves the "sound" of the recording location, plus it delivers flat response along with freedom from proximity effect.

Applications

Outstanding for use in capturing:

Piano • Acoustic guitar • Other acoustic instruments

Ideal for:

Critical studio and live audio applications

Includes

  • AT4022 microphone
  • AT8405a stand clamp for ⅝"-27 threaded stands
  • Windscreen
  • Protective carrying case

Features

  • Outstanding performance and rugged construction, ideal for critical studio and live applications
  • High SPL-handling and wide dynamic range
  • Flat, extended frequency response
  • Switchable 80Hz hi-pass filter and 10dB pad
  • Omnidirectional polar pattern provides maximum ambient pick up
  • Low self-noise ideally suited for digital recording equipment
  • Exceptional reproduction of low frequency sounds
  • Low-mass element for superb transient response

Specifications

  • Element: Fixed-charge back plate, permanently-polarized condenser
  • Polar Pattern: omnidirectional
  • Frequency Response: 20Hz - 20kHz
  • Low Frequency Roll-off: 80Hz, 12dB/octave
  • Open Circuit Sensitivity: -34dB (19.9mV) re 1V @ 1Pa
  • Impedance: 250Ω
  • Maximum Input Sound Level: 146dB SPL, 1kHz @ 1% THD; 156dB SPL, with 10dB pad (nominal)
  • Noise: 13dB SPL
  • Dynamic Range (typical): 133dB, 1kHz @ Max SPL
  • Signal-to-Noise Ratio: 81dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 48VDC, 3.0mA typical
  • Switches: Flat, roll-off; 10dB pad
  • Weight: 4.4oz. (124g)
  • Dimensions (L x max body diameter): 5.67" x 0.83" (144 x 21mm)
  • Output Connector: Integral 3-pin XLRM-type
  • Note: further information can be found within the items located under the "Documentation" tab above.
