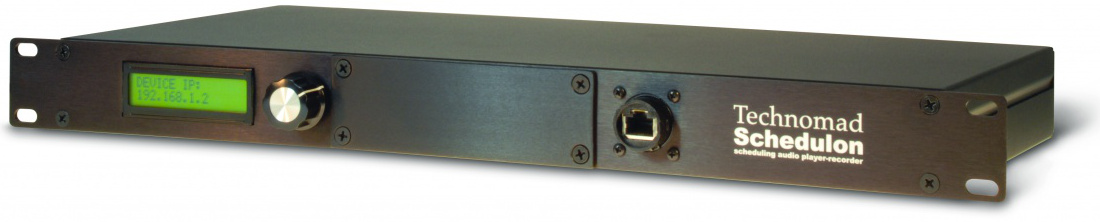

Product Overview
The Technomad Schedulon MP3 player-recorder with scheduling combines unlimited recording plus scheduling of sounds for automatic, unattended playback. Features flash-RAM memory (no hard-drive) and will not crash or catch a virus. The internal Real Time Clock ensures accurate time. Records audio from stereo line-in jacks and encodes as high quality (192kbps) MP3 sound files and assigns to any knob location for playback. Load sounds via the USB drive or Ethernet from your computer for fast file transfer (1GB expandable USB storage). Configure all functions using a web-interface with your computer, or by knob and screen.
Technomad Schedulon Features:
- Instant playback: you can assign audio files to any of ninety-nine playback slots' on the knob - and set a playback mode (loop, once, or play-while-hold) for each slot. This allows warning announcements or sirens to loop indefinitely, songs to play one time and stop, and sound effects to be performed via holding in the knob for as long as the sound is desired.
- Scheduled playback: up to 100 lines of automatic playback can be scheduled, specifying the sound file, time to start, time to stop, interval (i.e. every 5 minutes), and number of repeats. You can set sounds to play on specific dates, specific days of the week, weekends, or weekdays. It is simple to build complex schedules of announcements, bells or carillon sounds, SFX, etc. Scheduled sounds are interrupted if a front-knob (i.e. emergency evacuation) sound is selected, but resume playback after front-knob-selected playback stops.
- Management: the Schedulon can be remotely managed via web-browser (audio uploaded or deleted, schedule edited, sounds triggered, knob assignments changed), or completely programmed using only the knob and screen. No special software or computer type is required - just a modern browser. Sound playback can be triggered or stopped by simple HTML CGI commands if desired.
- Recording: the Schedulon can record audio via its stereo input - audio is encoded as WAV or OGG, and can be automatically assigned to any knob-slot for instant access. Recorded audio can also be scheduled.
Technomad Schedulon Specifications:
- Audio Specifications:
- Playback: WAV, MP3, OGG, FLAC
- Recording: WAV, OGG
- Physical Specifications:
- Size: 19” W x 1.75” H x 10” D; standard 1U rack-mount size
- Weight: 6 lbs
- Data input: Ethernet jack
- Audio input: 2x RCA (unbalanced)
- Audio output:
- 2x RCA (unbalanced)
- 1x 6 pin Euroblock (balanced)
- Power: 120-240VAC
