Belden 6300UE-U1000
1000 ft Plenum Rated 2-Conductor 18 AWG Security & Commercial Audio Cable

OUR PART #:  6300UE-U1000

Selected Model Price: $173.20
Write the first review.
Belden 6300UE-U1000
Select a Model: (shipping times are approximate)

Related Products

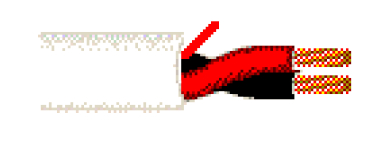

The Belden Cable 6300UE-U1000 is a 1000 ft of plenum-rated 2-conductor 18 AWG security and commercial audio cable that features stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket and ripcord.

Belden Cable 6300UE-U1000 Specifications:

  • Mechanical Characteristics (Overall):
    • Operating Temperature Range:  0°C To +75°C
    • UL Temperature Rating:  75°C
    • Bulk Cable Weight:  16 lbs/1000 ft.
    • Max. Recommended Pulling Tension:  45 lbs.
    • Min. Bend Radius/Minor Axis:  1.550 in.
  • Applicable Specifications and Agency Compliance (Overall):
    • Applicable Standards & Environmental Programs:
      • NEC/(UL) Specification:  CMP
      • NEC Articles:  800
      • CEC/C(UL) Specification:  CMP
      • EU Directive 2011/65/EU (ROHS II):  Yes
      • EU CEU Directive 2000/53/EC (ELV):  Yes
      • EU Directive 2002/95/EC (RoHS):  Yes
      • EU RoHS Compliance Date (mm/dd/yyyy):  04/01/2005
      • EU Directive 2002/96/EC (WEEE):  Yes
      • EU Directive 2003/11/EC (BFR):  Yes
      • CA Prop 65 (CJ for Wire & Cable):  Yes
      • MII Order #39 (China RoHS):  Yes
    • Flame Test:
      • UL Flame Test:  NFPA 262
      • C(UL) Flame Test:  FT6
    • Plenum (Y/N):  Yes
