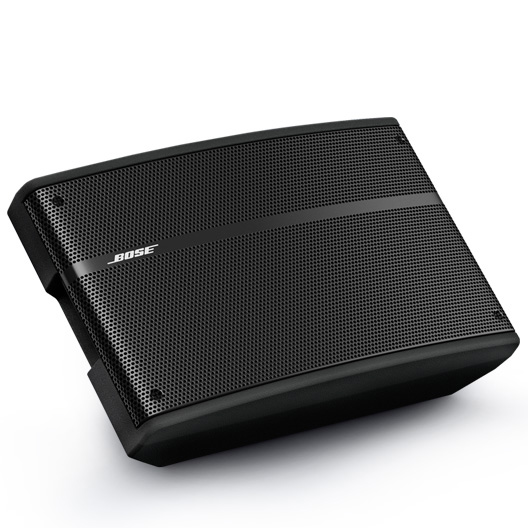

Bose 620M-BLACK
Multi-Position Floor Monitor

OUR PART #:  620M-BLACK

Articulated Array® speaker configuration provides 120° x 40° coverage.
Learn More

Call for price!

Similar Products

Articulated Array® speaker configuration provides 120° x 40° coverage.  Flexible placement options and unobtrusive styling allow for a variety of professional applications.

Features:

  • Three-in-one cabinet design provides smooth response and even coverage for multiple floor-monitor applications:
      -  45° position (individual mix), Horizontal: 40°; Vertical: 120°
      -  40° position (group mix – shallow stage), Horizontal: 120°; Vertical: 40°
      -  60° position (group mix – deep stage), Horizontal: 120°; Vertical: 40°
  • Proprietary Articulated Array® speaker configuration with six  2.25" (57 mm) mid-high frequency drivers combined with two (2) 5.25" (133 mm) woofers
  • Internal passive crossover network does not require active equalization
  • Recessed NL4 connectors allow for easy cable concealment, which reduces clutter on stage
  • Rear bumper prevents unwanted movement

Specifications:

Technical

  • Frequency Response (+/-3 dB): 70 Hz - 16 kHz
  • Frequency Range (-10 dB): 55 Hz - 18 kHz
  • Nominal Dispersion: 40° H x 120° V
  • Long-Term Power Handling: 200 W (800 W peak)
  • Sensitivity (SPL / 1 W @ 1 m): 90 dB SPL
  • Maximum SPL @ 1 m: 113 dB SPL (119 dB SPL peak)
  • Nominal Impedance: 8 ?

Physical

  • Enclosure: Molded textured polyethylene material
  • Environmental: Indoor use only
  • Connectors: Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
  • Dimensions:
      -  12.5" H x 20.6" W x 10.5" D "
      -  318 mm x 523 mm x 266 mm
  • Net Weight: 22 lb (10 kg)
  • Color: Black
  • Package Contents: 1 loudspeaker

Note: For indoor applications only.
