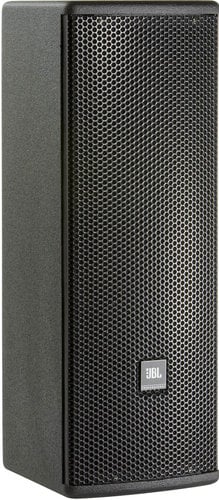

JBL AC28/26
2x 8" Compact 2-Way Loudspeaker with 120° x 60° Coverage

OUR PART #:  AC28/26-BLACK

In addition to providing smooth, low-distortion sound...
Learn More
Our Price: $1,530.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL AC28/26
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

In addition to providing smooth, low-distortion sound, JBL's AC28/26's Progressive Transition™ Waveguides deliver uniform off-axis frequency response to every point within the intended coverage area - not just in the horizontal and vertical planes.  PT Waveguides combine outstanding pattern control with undistorted sound for natural music and intelligible speech.

JBL’s Filtered Array Technology is a process where as each of the Low Frequency transducers is independently controlled for magnitude and phase response, resulting in smoother power response and constant coverage.

AE Compact is designed with multiple attachment points for mounting accessories such as OmniMount® type bracket and U-brackets, as well as stand mount adapters.

Every enclosure is constructed with multi-ply hardwood and finished with JBL's proprietary DuraFlex™ paint for the utmost in strength and durability. Each loudspeaker system utilizes "best in class" components and are voiced to work with all AE Series loudspeaker systems. In addition, each transducer has been subject to JBL's grueling 100-hour torture test to ensure years of trouble-free operation.

JBL AC28/26 Features:

  • Compact enclosure
  • 205 mm (8") LF transducers
  • 120° x 60° Progressive Transition Field Rotatable Waveguide with a 25 mm (1") exit compression driver
  • 375W continuous, 750W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for U-bracket, OmniMount type bracket, and stand mount adapter

JBL AC28/26 Specifications:

  • Frequency Range (-10 dB): 53 Hz - 20 kHz
  • Frequency Response (±3 dB): 65 Hz – 20 kHz
  • Power Rating:
    • 375W Cont. Pink Noise
    • 750W Program
    • 1500W Peak
  • Impedance: 8 ohms
  • Coverage Pattern: 120° x 60°
  • Dimensions: 26.8" H x 9.4" W x 10" D (679.5 x 237.5 x 254 mm)
  • Weight: 40.9 lbs (18.6 kg)
