ART HEADAMP6-PRO HeadAmp6 Pro 6 Channel Headphone Amplifier

OUR PART #: HEADAMP6-PRO MFR #: HEADAMP6PRO

Copied to clipboard

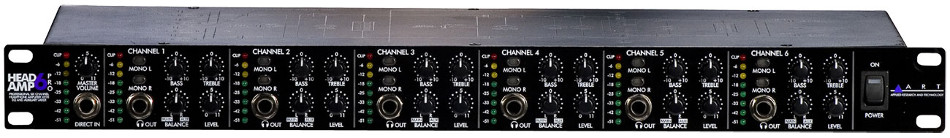

ART HEADAMP6-PRO HeadAmp6 Pro 6 Channel Headphone Amplifier Image 1

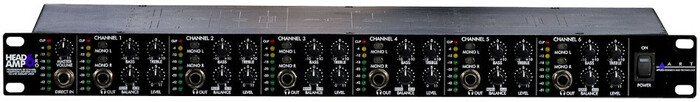

ART HEADAMP6-PRO HeadAmp6 Pro 6 Channel Headphone Amplifier Image 2
ART HEADAMP6-PRO HeadAmp6 Pro 6 Channel Headphone Amplifier
Our Price: $299.99
List Price: $349.99
You save 14%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$9/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The ART HeadAmp6PRO is a six-channel stereo headphone amplifier that includes a six-channel auxiliary input section that can be used to provide the popular “More-Me” function on each headphone mix. Each output channel also features a dual function BALANCE control which will pan between LEFT & RIGHT sides of the main signal bus, or vary the MIX between the main signal bus and the AUXILIARY input for that respective channel. Bass and treble controls are included on each output channel for fine-tuning the tone. Outputs include both front and rear panel stereo 1/4” TRS jacks for ease of installation and quick patching capability. Two MONO select buttons on each channel select between four operating modes; 1) Stereo, 2) Mono Left, 3) Mono Right, 4) Mono Both (Left & Right) for versatile monitoring solutions. The main outputs for each channel of the headphone amplifier are rear mounted stereo TRS jacks and are wired in parallel with the corresponding output jacks on the front panel. Front panel, rear panel, or both front and rear panel outputs can be used simultaneously to drive headphones or be used as feeds to additional headphone amplifiers in a distributed audio network. Input options include XLR and 1/4” TRS balanced inputs with matching “Thru” jacks for bridging multiple HeadAmp 6 Pro units. An additional front panel stereo 1/4” TRS jack for quick patch override of the rear panel inputs is included for quick insertion of any stereo source. Eight-segment LED level indicators provide visual feedback of the signal level on all channels as well as the main signal bus.

Features

  • Six channels with separate bass/treble controls
  • XLR and 1/4" TRS balanced inputs
  • Auxiliary front-mounted separate source input
  • Front- and rear-panel output jacks
  • Operates in stereo, mono (source left), mono (source right), or summed mono (source left and right)

Specifications

  • Input Impedance: 40k ohm balanced
  • Maximum Input Level: +21.5dBu
  • Output Level: 500 mW @ 32 ohms
  • Maximum Gain: 25.6 dB (tone controls set flat)
  • Frequency Response: 20 Hz - 50 kHz; +0, -2dB
  • CMRR: 40dB
  • Power Requirements: 105-125 VAC AC 60 Hz
  • Dimensions: 1.75" x 19" x 7.5"
  • Weight: 6.8 lbs
