Ultra Compact 2-Way Speaker with 1 x 5.25” LF Transducer, in Black, Sold in Pairs


The JBL AC15 is a full range, ultra-compact, loudspeaker system engineered to deliver maximum bandwidth and SPL in a single system package...
Learn More
Our Price: $460.00
Write the first review.

This product must be purchased in multiples of 2

Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

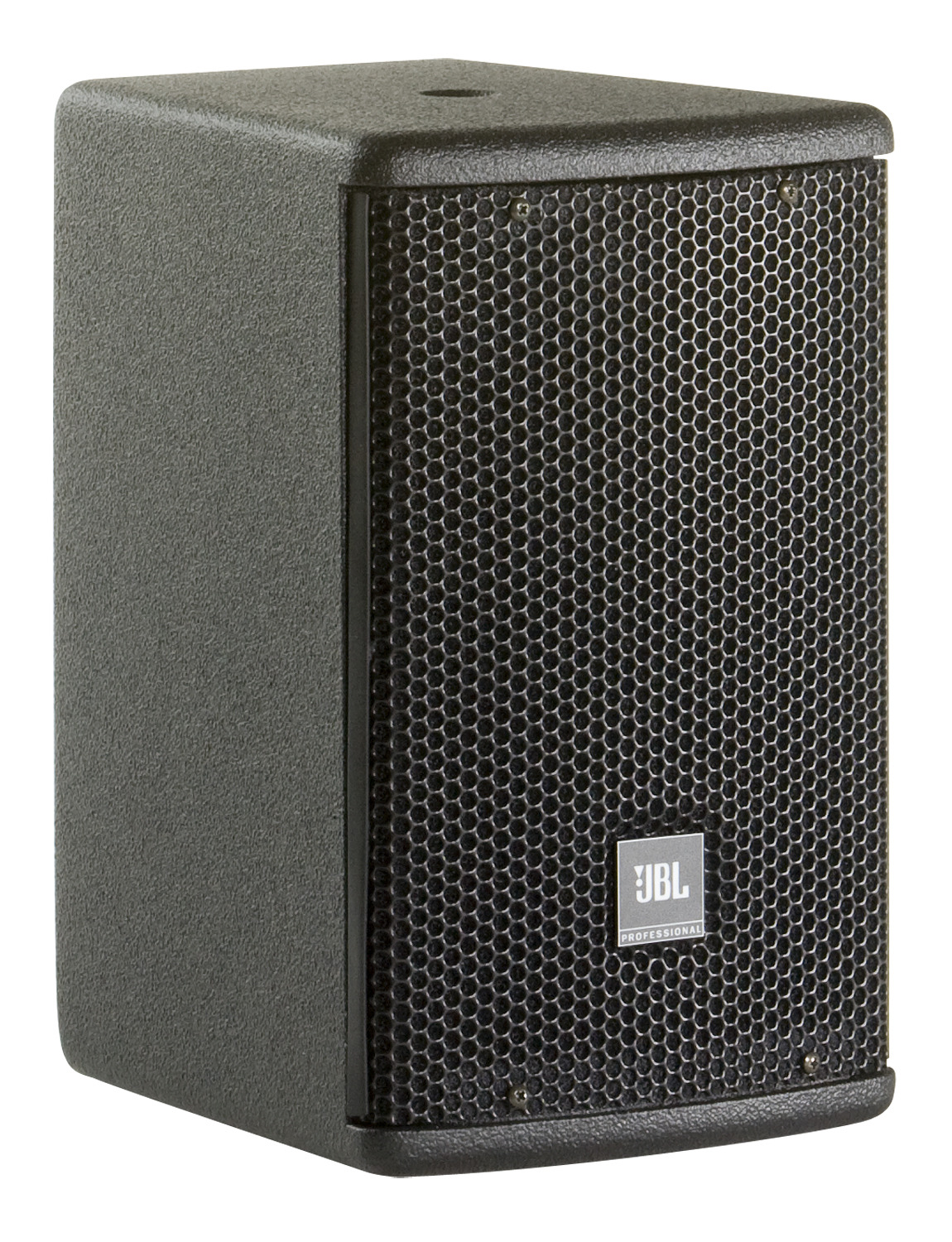

The JBL AC15 is a full range, ultra-compact, loudspeaker system engineered to deliver maximum bandwidth and SPL in a single system package, along with being visually unobtrusive. The enclosure is designed to allow installation very close to walls and ceilings, making it great for installation under columns, balconies, or for wall mounting. Its high frequency device is a 1" dome tweeter integrated into a 90° x 90° waveguide, offering even coverage throughout the intended usage area. The AC15 employs a 5.25" Symmetrical Field Geometry (SFG™) LF Transducer with copper-clad aluminum edge-wound 1.5" voice coil, and copper-capped pole piece that improves performance through the reduction of voice coil inductance and distortion.

Its multi-ply hardwood enclosure is designed to work in the vertical as well as horizontal planes. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket (brackets sold separately). This enclosure features JBL's DuraFlex™ finish and includes a powder-coated steel, foam-backed grille.

NOTE: The JBL AC15 speaker is priced each, and sold by the pair. For more information, contact your Full Compass Sales Pro.

JBL AC15 Features:

  • 1" Dome Tweeter with 90° x 90° Coverage
  • 5.25" (135mm) LF transducer
  • Ultra compact enclosure
  • 300W Program Power
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket (bracket soldseparately)

JBL AC15 Specifications:

  • Frequency Range (-10 dB): 80 Hz -20 kHz
  • Frequency Response (±3 dB): 90 Hz -18 kHz
  • Power Rating:
    • 150W Cont. Pink Noise
    • 300W Program
    • 600W Peak
  • Impedance: 16 Ohms
  • Coverage Pattern: 90° x 90°
  • Dimensions (HxWxD): 9.5" x 5.9" x 7" (241.3 x150.3 x 177.8 mm)
  • Weight: 10.5 lbs (4.7 kg)
JBL MTU-15 U Bracket for AC15, Black
JBL MTU-15 U Bracket for AC15, Black
U-Bracket for JBL AC15 models.  Black
