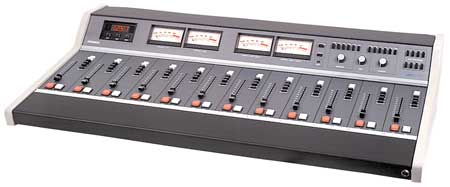

Dynamax Consoles MX12EW
Broadcast Mixer 12 Ch Wide Design

OUR PART #:  MX12EW

DYNAMAX MIXERS OVERVIEW These cost-effective audio mixing consoles offer a spacious, easy-to-use layout with linear faders.
Learn More

Call for price! Not available online.
List Price: $6,800.00

Similar Products

DYNAMAX MIXERS OVERVIEW

These cost-effective audio mixing consoles offer a spacious, easy-to-use layout with linear faders. They feature 2 stereo and 2 mono output busses, two 4x1 auxiliary inputs, metering for all 4 output busses with dedicated PGM, mic preamp on the first 2 channels, full independent remote start features and remote on/off.

Units boast solid steel construction with a highly durable control surface overlay. The console's modular design and hinged hood simplifies routine maintenance and allows quick, easy access to all console circuitry.

Features:

  • True Modular Design
  • Ultra-reliable motherboard construction
  • VCA mixer and monitor control
  • Active balanced line inputs
  • Active balanced main monitor inputs
  • Full monitoring/cueing facilities with VCA level control and active source selection
  • Built-in cue amp with speaker and amplified stereo 8ohm headphone output
  • Independent level controls and remote start for each "A" and "B" input
  • Opto-isolated remote module on/off
  • Two inputs per module, mic/line or line/line (line inputs may be mono or stereo, consumer or professional format)
  • Two input expansion switches standard
  • Separate audio and logic power supplies
  • Sturdy, all-steel construction
  • Four assignable outputs – two stereo plus two mono
  • Durable Lexan overlay control surfaces
  • Rotary or linear faders
  • Count-up event timer standerd
  • Excellent RF immunity
