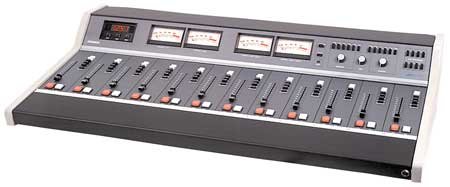

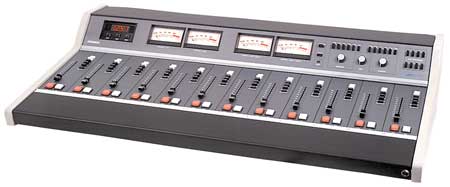

Dynamax Consoles MX8E Broadcast Mixer 8 Channel

DYNAMAX MIXERS OVERVIEW

These cost-effective audio mixing consoles offer a spacious, easy-to-use layout with linear faders. They feature 2 stereo and 2 mono output busses, two 4x1 auxiliary inputs, metering for all 4 output busses with dedicated PGM, mic preamp on the first 2 channels, full independent remote start features and remote on/off.

Units boast solid steel construction with a highly durable control surface overlay. The console's modular design and hinged hood simplifies routine maintenance and allows quick, easy access to all console circuitry.

Features:

• True Modular Design
• Ultra-reliable motherboard construction
• VCA mixer and monitor control
• Active balanced line inputs
• Active balanced main monitor inputs
• Full monitoring/cueing facilities with VCA level control and active source selection
• Built-in cue amp with speaker and amplified stereo 8ohm headphone output
• Independent level controls and remote start for each "A" and "B" input
• Opto-isolated remote module on/off
• Two inputs per module, mic/line or line/line (line inputs may be mono or stereo, consumer or professional format)
• Two input expansion switches standard
• Separate audio and logic power supplies
• Sturdy, all-steel construction
• Four assignable outputs – two stereo plus two mono
• Durable Lexan overlay control surfaces
• Rotary or linear faders
• Count-up event timer standerd
• Excellent RF immunity
