OUR PART # LS-1522

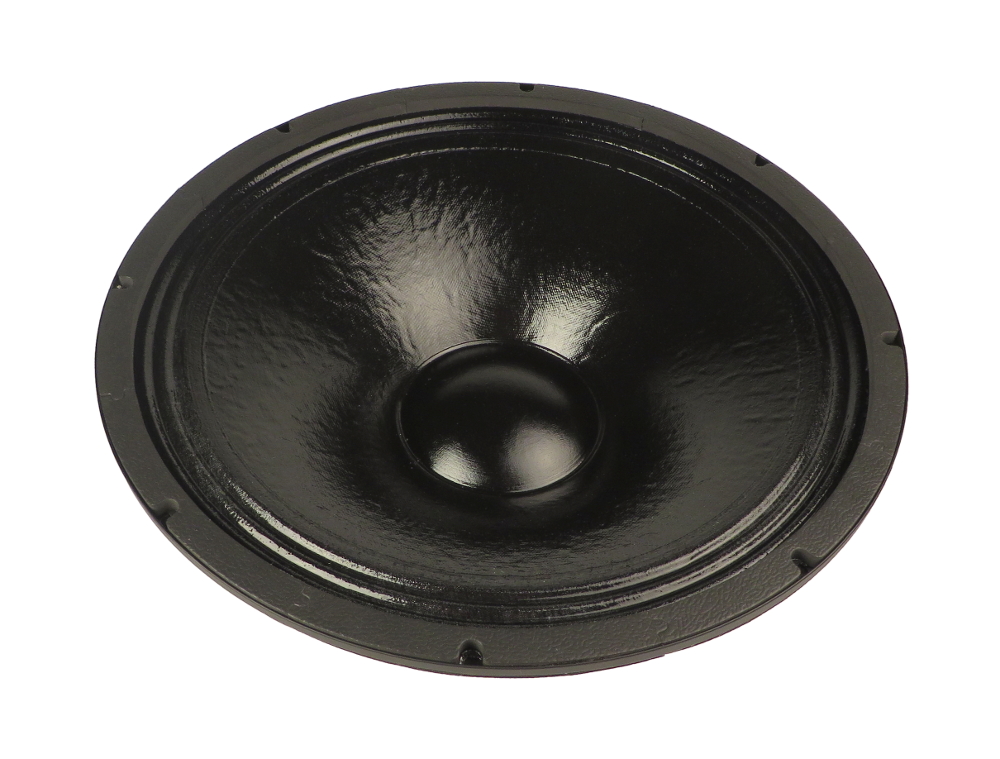

15" speaker for Turbsound model TXD-252.
The TXD-252 is a switchable passive/biamp fullrange loudspeaker enclosure designed for use in a wide variety of live sound, fixed installation and mobile DJ applications as well as in pubs, bars and nightclubs.
It consists of two 15” reflex-loaded low frequency drivers and a 3” diaphragm high frequency driver on a rotatable 80°H x 50°V Converging Elliptical Waveguide™. The loudspeaker components are matched with an internal passive crossover network whichan easily be bypassed for bi-amplified operation.
The high frequency horn can be rotated through 90° to allow a swap of the horizontal and vertical coverage patterns. This allows the cabinet to be suspended either horizontally or vertically in permanent installations using the M10 rigging points provided on the sides, top and rear of the cabinet.
The trapezoidal cabinet is constructed from 15mm (5/8”) birch plywood, screwed and glued together for maximum rigidity, and is finished in black semi-matt textured paint. Six recessed flush handles are provided for easy lifting and carrying and the rear of the cabinet is pre-drilled for optional T4 wheels. Four rubber feet are fitted to the bottom of the cabinet, and a grey powder-coated perforated steel mesh grille protects the drive units from damage.
Two Neutrik Speakon NL4MP speaker connectors are provided on the rear panel for passive input and parallel connections. An additional switched Speakon NL4 connector allows the TXD-252 to be used in biamplified mode.
