Gefen Inc EXT-VGA-AUDIO-141
VGA Audio Extender

OUR PART #:  EXT-VGA-AUDIO-141

Gefen's VGA Audio Extender extends VGA and analog audio up to 150 feet over CAT-5 cable.
Learn More
Our Price: $359.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-VGA-AUDIO-141
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

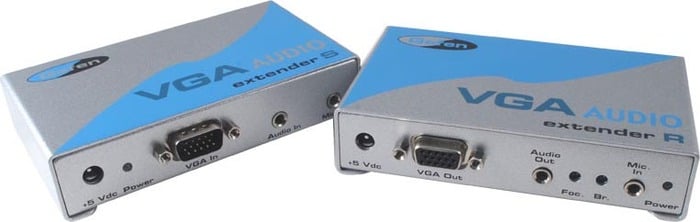

Gefen's VGA Audio Extender extends VGA and analog audio up to 150 feet over CAT-5 cable.  Simply connect the sender to your computer, and the receiver to the display and speakers.  CAT5e cables (sold separately) connect the sender unit to the receiver unit (both units require power supplies).

Gefen Inc. EXT-VGA-AUDIO-141 Features:

  • Trimpots and dip switches for fine video equalization
  • Perfect for digital signage applications
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200
  • Bi-directional audio transmission for speaker and microphone

Gefen Inc. EXT-VGA-AUDIO-141 Specifications:

  • Video Amplifier Bandwidth: 350 MHz
  • Input Video Signal: 1.2 Volts p-p / Input SyncSignal: 5 Volts p-p (TTL)
  • Horizontal Frequency Range: 15-70 KHz
  • Vertical Frequency Range: 30 - 170 Hz
  • Video In: HD-15 male
  • Video out: HD-15 female
  • Sample Rate: 5 kHz (min) - 48 kHz (max)
  • Frequency Response: 20Hz - 20kHz
  • Audio Connector: mini-phone Stereo 3.5mm
  • Link Connector: RJ-45 Shielded
  • Power Supply: 5V DC
  • Power Consumption: 5 watts (max.)
  • Dimensions (WxHxD): 4" x 1.125" x 3"
  • Shipping Weight: 3 lbs.
