Rolls MB15
Dual Stereo Matchbox Converter


Our Price: $56.00
List Price: $90.00
You save 38%! (Low Price Guarantee)
In Stock

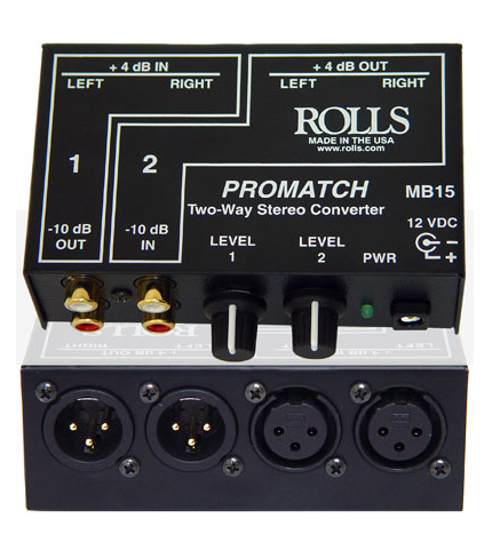

The Rolls MB15 ProMatch is a line level converter that converts consumer stereo RCA signals to balanced XLR professional line level. It is also ideal for video duplication and audio recording studio applications. The audio device has two XLR inputs and stereo RCA outputs on one side, and stereo RCA inputs and two XLR outputs on the other side. Each side has stereo level controls and an LED indicates that power is applied to the unit. When adding a stereo pair of jumper cables between the four RCA jacks (connecting the ins and outs), the two level controls may be inserted into any balanced XLR line.

Rolls MB15 Features:

  • Allows for connection of consumer level products such as camcorders, CD and cassette players to professional level recorders, mixing consoles and signal processors
  • Double duty functionality as balanced inline level control by patching RCA inputs and outputs together
  • Bi-directional line level audio signal converter and stereo direct box converts from consumer to professional, professional to consumer levels
  • Standard stereo XLR and RCA connectors, dedicated stereo level control knobs for inputs and outputs

Rolls MB15 Specifications:

  • Maximum Input Level:
    • Balanced: +22 dB
    • Unbalanced: +22 dB
  • Maximum Output Level:
    • Balanced: +18 dB
    • Unbalanced: +12 dB
  • Input Connectors:
    • 2 x 3-pin XLR Female, Balanced
    • 2 x RCA Phono, Unbalanced
  • Output Connectors:
    • 2 x 3-pin XLR Male, Balanced
    • 2 x RCA Phono, Unbalanced
  • Input Impedance:
    • XLR: 10 kOhms
    • RCA: 100 kOhms
  • Output Impedance:
    • XLR: 100 Ohms, Balanced
    • RCA: 100 Ohms
  • Dimensions: 4.15" x 2.5 x 1.55" (105.4 x 63.5 x39.4mm)
  • Weight: 1 lb (453.6 g)

Click to download

Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
