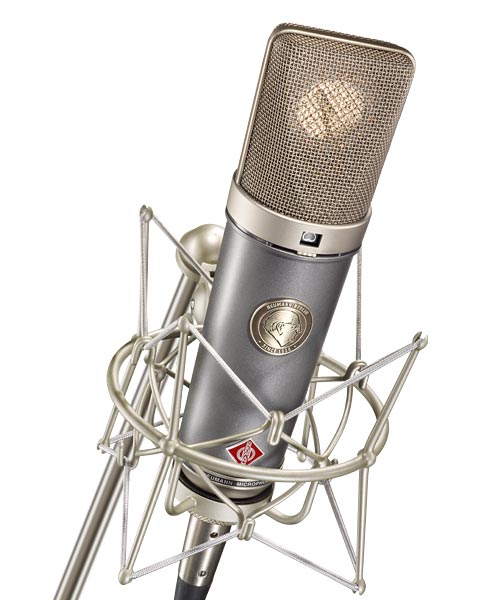

Neumann TLM 67 SET Z Large Diaphragm Multipattern Studio Condenser Microphone with Accessories, Nickel

OUR PART #: TLM67-SETZ MFR #: USTLM 67 SET Z

Copied to clipboard

Neumann's TLM 67 multipattern microphone is a contemporary development of their U 67. ...Read more

Neumann TLM 67 SET Z Large Diaphragm Multipattern Studio Condenser Microphone With Accessories, Nickel Image 1
Neumann TLM 67 SET Z Large Diaphragm Multipattern Studio Condenser Microphone With Accessories, Nickel Image 2
Neumann TLM 67 SET Z Large Diaphragm Multipattern Studio Condenser Microphone With Accessories, Nickel Image 3
Neumann TLM 67 SET Z Large Diaphragm Multipattern Studio Condenser Microphone With Accessories, Nickel
Our Price: $2,495.00
List Price: $3,129.00
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$70/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Neumann's TLM 67 multipattern microphone is a contemporary development of their U 67. The TLM 67 has a K 67 capsule, a circuit design which closely reproduces the U 67 sound characteristics, three directional pattern, pre-attenuation and high-pass filter.

In the world of studio microphones, the numbers "47", "67" and "87"- have associations that inspire enthusiasm among professionals in the field. It is of course no coincidence that the name of the TLM 67 contains the number "67". In many respects, the TLM 67 is based on the workhorse of the 1960s - the legendary U 67. Like the U 67, the TLM 67 incorporates the K 67 capsule. In addition, the special new circuit design closely reproduces the sound characteristics of the classic U 67, without the use of tubes. Similar Neumann circuit technology has already proved very successful in the TLM 49.

The TLM 67 is extremely versatile. Its three switchable directional characteristics (omnidirectional, cardioid and figure-8), selectable 10 dB pre-attenuation and high-pass filter permit detailed adjustments to be made, depending upon the specific recording situation.

Includes

  • TLM 67 multipattern microphone in dual tone finish
  • Wood box case
  • EA 87 shockmount
  • WS 87 windscreen
  • IC 3/25 cable

Features

  • Sound characteristics based on the legendary U 67
  • Three switchable directional characteristics (omnidirectional, cardioid and figure-8)
  • Switchable high-pass filter and pre-attenuation
  • Transformerless circuit technology
  • Dual-color exterior design

Specifications

  • Acoustical operating principle: Pressure gradient transducer
  • Directional pattern: Omni/cardioid/figure-8
  • Frequency range: 20 Hz to 20kHz
  • Sensitivity at 1 kHz into 1 kohm: 10/18/9 mV/Pa
  • Rated impedance: 50 ohms
  • Rated load impedance: 1 kohms
  • Equivalent noise level, CCIR: 29/24/30 dB
  • Equivalent noise level, A-weighted: 16/11/17 dB-A
  • Signal-to-noise ratio, CCIR (rel. 94 dB SPL): 65/70/64 dB
    • According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
  • Maximum SPL (tube characteristic) for THD < 0.5 %: 110/105/111 dB
  • Maximum SPL (tube characteristic) for THD < 5 %: 130/125/131 dB
  • Maximum output voltage: -1 dBu
  • Dynamic range of mic amp (A-weighted, 0.5%): 94 dB
  • Dynamic range of mic amp (A-weighted, 5%): 104 dB
    • Measured as equivalent el. input signal, k2 dominant
  • Power supply: P48
  • Matching connector: 3-pin XLR-F
  • Weight: 490 g
  • Diameter: 56 mm
  • Length: 200 mm
