Neumann TLM 67
Multipattern Microphone with K67 Capsule and Wood Box in Dual Tone Finish

OUR PART #:  TLM67

Neumann's TLM 67 multipattern microphone is a contemporary development of their U 67.
Learn More
Our Price: $2,199.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann TLM 67
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Neumann's TLM 67 multipattern microphone is a contemporary development of their U 67.   The TLM 67 has a K 67 capsule, a circuit design which closely reproduces the U 67 sound characteristics, three directional pattern, pre-attenuation and high-pass filter.

In the world of studio microphones, the numbers "47", "67" and "87"- have associations that inspire enthusiasm among professionals in the field.  It is of course no coincidence that the name of the TLM 67 contains the number "67".  In many respects, the TLM 67 is based on the workhorse of the 1960s - the legendary U 67.  Like the U 67, the TLM 67 incorporates the K 67 capsule.  In addition, the special new circuit design closely reproduces the sound characteristics of the classic U 67, without the use of tubes.  Similar Neumann circuit technology has already proved very successful in the TLM 49.

The TLM 67 is extremely versatile.  Its three switchable directional characteristics (omnidirectional, cardioid and figure-8), selectable 10 dB pre-attenuation and high-pass filter permit detailed adjustments to be made, depending upon the specific recording situation.

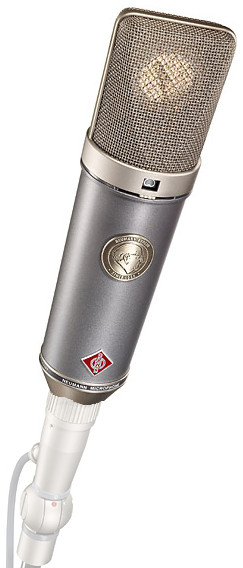

NOTE: The grayed out cable shown attached to the mic above is NOT included.

Exterior Design

The TLM 67 is a large-diaphragm condenser microphone in the classic Neumann style, with a unique dual-color design.  The stylish pearl-gray of the microphone body combined with the classic Neumann nickel lends the microphone a touch of distinctive individuality.

The legendary, frequently imitated design of the Neumann U 67 was the first to be developed by Neumann employees in collaboration with the famous German designer, Wilhelm Braun-Feldweg.  The design of the TLM 67 represents a contemporary development of that of the U 67, transferring its positive impact to the present era.  The enhanced exterior design thus links past and future microphone design trends.

On the occasion of its 80th anniversary, the Neumann company is honoring its founder, Georg Neumann, with a three-dimensional metal emblem on the front of the TLM 67.  The distinctive Neumann attraction is conveyed in every detail of the microphone.

Applications

Due to its extensive control features, the TLM 67 is suitable for a wide range of applications.  In addition to its primary role as a vocal microphone for all types of music and spoken voice, in orchestral recordings the TLM 67 can be used as a main microphone and as a spot microphone for individual instruments.

Acoustic Features

The microphone is addressed from the side on which the Neumann logo is located.

A large wire mesh grille encloses the elastically mounted double diaphragm capsule.  The directional characteristics omnidirectional, cardioid or figure-8 can be selected via a switch below the grille.  The selected setting is indicated by a symbol shown in a window above the switch.

Electrical Features

The letters “"TLM" stand for "transformerless microphone".  In the TLM 67, an electronic circuit is used rather than a conventional output transformer.  Like a transformer, the circuit ensures good common mode rejection, effectively suppressing interference signals that affect the balanced modulation line.  The microphone can operate at sound pressure levels of up to 105 dB without distortion, and has a dynamic range of 94 dB (A-weighted), without the use of the pre-attenuation switch.

Filter and Preattenuation

The pre-attenuation switch on the back of the microphone can be used to reduce transmission levels by approx. 10 dB.  It should be used only when there is a risk of overloading following devices due to very high sound pressure levels.  Use of the switch does not increase the dynamic range of the microphone, but rather shifts it by 10 dB, to higher sound pressure levels.  The other switch on the back of the microphone can be used to change the cutoff frequency of the built-in high-pass filter, so as to suppress the effects of impact sound and wind noise, or to compensate for the proximity effect.

Operational Reliability

Elastic mounting of the capsule supplies protection from the transmission of structure-borne noise.  If required, the EA 87 elastic suspension and WS 87 windscreen are available as accessories, for further suppression of structure-borne and wind noise.  The PS 15 or PS 20 a popscreen can be used if the microphone is to be addressed at close range.

Neumann TLM 67 Features:

  • Sound characteristics based on the legendary U 67
  • Three switchable directional characteristics (omnidirectional, cardioid and figure-8)
  • Switchable high-pass filter and pre-attenuation
  • Transformerless circuit technology
  • Dual-color exterior design

Neumann TLM 67 Specifications:

  • Acoustical operating principle: Pressure gradient transducer
  • Directional pattern: Omni/cardioid/figure-8
  • Frequency range: 20 Hz to 20kHz
  • Sensitivity at 1 kHz into 1 kohm: 10/18/9 mV/Pa
  • Rated impedance: 50 ohms
  • Rated load impedance: 1 kohms
  • Equivalent noise level, CCIR*: 29/24/30 dB
  • Equivalent noise level, A-weighted*: 16/11/17 dB-A
  • Signal-to-noise ratio, CCIR* (rel. 94 dB SPL): 65/70/64 dB
    *Accordingto IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
  • Maximum SPL (tube characteristic) for THD < 0.5 %**: 110/105/111 dB
  • Maximum SPL (tube characteristic) for THD < 5 %**: 130/125/131 dB
  • Maximum output voltage: -1 dBu
  • Dynamic range of mic amp (A-weighted, 0.5%**): 94 dB
  • Dynamic range of mic amp (A-weighted, 5%**): 104 dB
    **Measured asequivalent el. input signal, k2 dominant
  • Power supply: P48
  • Matching connector: 3-pin XLR-F
  • Weight: 490 g
  • Diameter: 56 mm
  • Length: 200 mm
