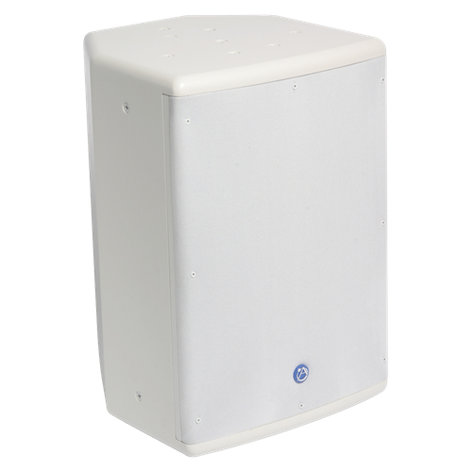

Atlas Sound SM8SUB70-W
8" Surface Mount Subwoofer in White

OUR PART #:  SM8SUB70-W

The Atlas Sound SM8SUB70-W 8" subwoofer system is perfect for restaurants, bars, and high-fashion retail outlets.
Learn More
Our Price: $338.99
List Price: $423.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound SM8SUB70-W
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound SM8SUB70-W 8" subwoofer system is perfect for restaurants, bars, and high-fashion retail outlets. The system utilizes a 8" woofer housed in a 915 cubic inch multi-angle, flyable, wood enclosure system to provide extended low frequency response with a wide variety of mounting options. (Not for outdoor use!). Inserts are included for use with 1/4"-20 drop forge eyebolts, optional SM8CBKT-B /-W mounting bracket.

An 18 dB/octave three-pole passive crossover eliminates the need for a separate electronic network or dedicated amplification to power the speaker. Its low crossover point (120Hz) nearly eliminates localization, allowing a designer to boundary-load the SM8SUB70-B near a wall or into a corner for maximum output, while maintaining even coverage throughout the space.

A premium 70.7V transformer allows the SM8SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low frequency response and more overall audio impact for foreground music systems. (Unit is also 8ohm compatible). Perfect for use with other SM series full range loudspeakers.

Atlas Sound SM8SUB70-W Features:

  • Attractive, yet Heavy-Duty Grille Assembly
  • Barrier Strip Input for 70.7/100V/8 Ohm or Parallel 4-Pole Speak-ON Input for 8 Ohm Operation Only
  • Durable White, Rough-Coat Finish
  • Fuse Protection for Driver
  • Includes Internal High Efficiency 60 Watt 70.7/100V Transformer (May be Bypassed for 8 Ohm Operation)
  • Multiple 1/4"-20 Inserts, Providing Fly Points for a Variety of Mounting Configurations
  • Omnimount Compatible (Not Sold by Atlas Sound)
  • Optional Bracket for Wall Mounting
  • Unique Input Panel Allows Use of Standard 4" Square Box Cover (Raco 753 or eq.) for Applications Where Flex Conduit is Required for Termination

Atlas Sound SM8SUB70-W Specifications:

  • Speaker Type:  Sub
  • Power Taps:  7.5, 15, 30, 60 & 8 Ohms
  • Frequency Response:  55Hz - 100Hz
  • Sensitivity:  89dB
  • Dispersion:  Omni
  • Height:  15-1/2" (39.37 cm)
  • Width:  10-5/8" (26.9875 cm)
  • Depth:  10-3/8" (26.3525 cm)
  • Shipping Weight:  26.00 lbs (11.79 kgs)
