Cable Up YP-M3-PF3D-0.5 6-inch 1/8" TRS Male to Dual 1/4" TRS Female Parallel Y-Cable

OUR PART #: YP-M3-PF3D-0.5

Copied to clipboard

Cable Up's Industrial audio parallel y-cables feature a high-performance, yet rugged combination of low capacitance quality cable. ...Read more

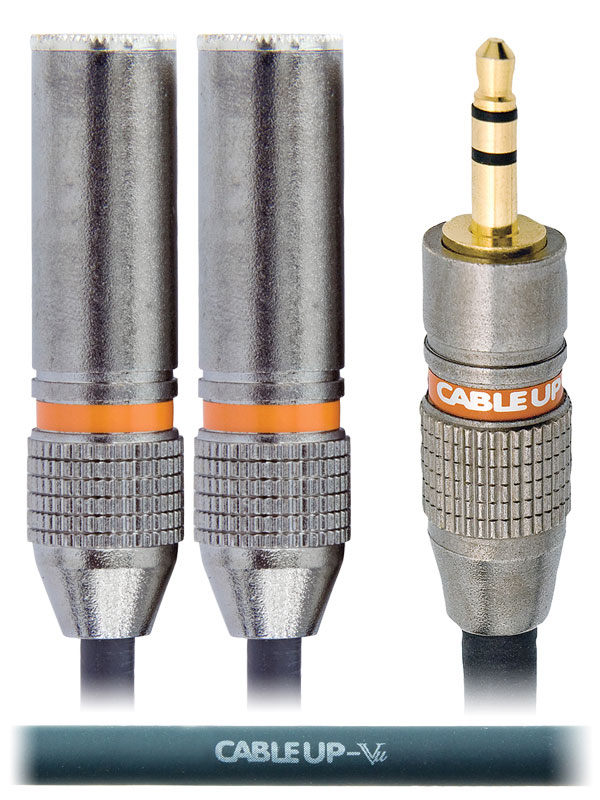

Cable Up YP-M3-PF3D-0.5 6-inch 1/8" TRS Male To Dual 1/4" TRS Female Parallel Y-Cable Image 1
Cable Up YP-M3-PF3D-0.5 6-inch 1/8" TRS Male To Dual 1/4" TRS Female Parallel Y-Cable
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Cable Up's Industrial audio parallel y-cables feature a high-performance, yet rugged combination of low capacitance quality cable. The connectors are fitted with gold plated contacts for reliable professional use at a competitive price.

All Cable Up® Industrial cables are covered by a 1-year unconditional warranty against defects in material or workmanship.

Cable Up YP-M3-PF3D-0.5 Specifications:

  • Cable:
    • Number of Conductors: 2
    • Conductors: 24 AWG
    • Stranding: 20 x 0.2 mm
    • Conductor Type: Bare Copper
    • Insulation Material: HDPE
    • Thickness: 0.6 mm
    • Core O.D.: 1.4 mm
    • Filler/Cord Material: Cotton
    • Shield Type: 64 strands x 0.12 mm
    • Shield Style: Spiral
    • Shield Material: Bare Copper
    • Jacket Type: PVC
    • Jacket Thickness: 1.6 mm
    • Total O.D.: 5 mm
  • Connectors:
    • 1/8" TRS male plug
      • Cable Up Part #: 18TRSM-C
      • Plate gold tip, ring, sleeve
    • 2x 1/4" TRS female jacks: Cable Up Part #: 14TRSF-C
