Electro-Voice TX1152FM 15" 2-Way Passive Vertical Floor Monitor with 90 x 50 Horn

OUR PART #: TX1152FM MFR #: F.01U.302.278

Copied to clipboard

TOUR X SERIES SPEAKER SYSTEMS These high performance speakers feature EV's SMX woofers... ...Read more

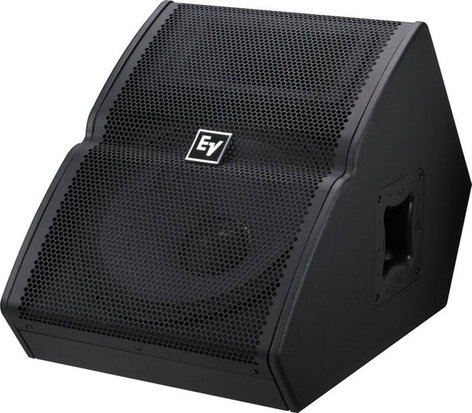

Electro-Voice TX1152FM 15" 2-Way Passive Vertical Floor Monitor With 90 X 50 Horn Image 1
Electro-Voice TX1152FM 15" 2-Way Passive Vertical Floor Monitor With 90 X 50 Horn
Our Price: $999.00
List Price: $1,219.00
You save 18%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$28/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

TOUR X SERIES SPEAKER SYSTEMS

These high performance speakers feature EV's SMX woofers, which yield extraordinarily low levels of distortion without sacrificing sensitivity. The backbone grille design is aesthetically remarkable while also damage-resistant, and the input panels and handle were ergonomically designed for maximum comfort and utility. Steep slope analog crossovers with elliptical filters provide up to 36dB per octave slopes, greatly reducing acoustic transducer interaction for better sound and higher power handling. Finally, the floor monitors feature a patent-pending SST (Signal Synchronized Transducers) design which utilizes a split baffle layout, allowing the enclosure to be more compact and yielding near-perfect driver phase summation. Tour X speakers are ideal for bands, entertainers, DJ, karaoke, speech reinforcement, and more.

Electro-Voice TX1152FM Specifications:

  • Frequency Response (-3dB): 65 - 20000 Hz
  • Frequency Response (-10dB): 45 - 20000 Hz
  • Recommended High-Pass Frequency: 45 Hz
  • Sensitivity @ 1W/1m: 100 dB
  • Max SPL/1m (calculated): 133 dB
  • Coverage (nominal -6dB) H°: 90°
  • Coverage (nominal -6dB) V°: 50°
  • Rotatable Horn: No
  • System Power Handling (continuous/program/peak): 500/1000/2000 Watts
  • LF Transducer: SMX2151
  • HF Transducer: DH3
  • Crossover Frequency: 1750 Hz
  • Nominal Impedance (Passive): 8 Ohms
  • Minimum Impedance: 6.2 Ohms
  • Enclosure Material: Plywood and MDF with EVCOAT
  • Suspension: Six 3/8" threaded inserts
  • Color: Black
  • Flying: No
  • Input Connections: Parallel Neutrik® NL4
  • Internal Crossover: Yes
  • Speaker Type: Full Range
  • Net Weight: 61.29 lbs.
  • Dimensions (HxWxD): 30.55" x 17.56" x 17.56"
