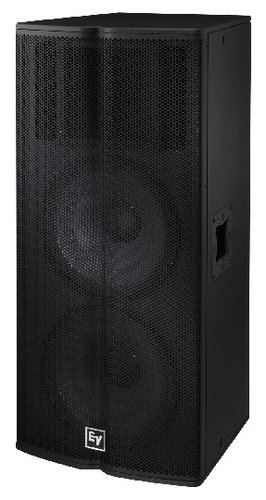

Electro-Voice Tour X TX2152 Dual 15" 2-Way Passive Speaker with a 60x40 Horn

OUR PART #: TX2152 MFR #: F.01U.302.274

Copied to clipboard

These high performance speakers feature EV's SMX woofers, which yield extraordinarily low levels of distortion without sacrificing sensitivity. ...Read more

Electro-Voice Tour X TX2152 Dual 15" 2-Way Passive Speaker With A 60x40 Horn Image 1
Electro-Voice Tour X TX2152 Dual 15" 2-Way Passive Speaker With A 60x40 Horn
Our Price: $1,499.00
List Price: $2,068.00
You save 28%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$42/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

These high performance speakers feature EV's SMX woofers, which yield extraordinarily low levels of distortion without sacrificing sensitivity. The backbone grille design is aesthetically remarkable while also damage-resistant, and the input panels and handle were ergonomically designed for maximum comfort and utility. Steep slope analog crossovers with elliptical filters provide up to 36dB per octave slopes, greatly reducing acoustic transducer interaction for better sound and higher power handling. Finally, the floor monitors feature a patent-pending SST (Signal Synchronized Transducers) design which utilizes a split baffle layout, allowing the enclosure to be more compact and yielding near-perfect driver phase summation. Tour X speakers are ideal for bands, entertainers, DJ, karaoke, speech reinforcement, and more.

Specifications:

  • Frequency Response (-3dB): 55 – 13,000 Hz
  • Frequency Response (-10dB): 50 – 18,000 Hz
  • Recommended High-Pass Frequency: 40 Hz
  • Sensitivity @ 1W/1m: 103 dB
  • Max SPL/1m (calculated): 139 dB
  • Coverage (nominal -6dB) H°: 60 °
  • Coverage (nominal -6dB) V°: 40 °
  • Rotatable Horn: Yes
  • System Power Handling (continuous/program/peak): 1000/2000/4000 Watts
  • LF Transducer: (2) SMX2151
  • HF Transducer: ND2
  • Crossover Frequency: 1750 Hz
  • Nominal Impedance (passive): 4 ohms
  • Minimum Impedance: 3.1 ohms
  • Enclosure Material: Plywood and MDF with EVCOAT
  • Suspension: (6) 3/8-inch threaded inserts
  • Color: Black
  • Flying: Yes
  • Input Connections: Parallel Neutrik® NL4
  • Internal Crossover: Yes
  • Speaker Type: Full Range
  • Net Weight: 94.36 lbs.
  • Dimensions (HxWxD): 45.43" x 20" x 18.54"
