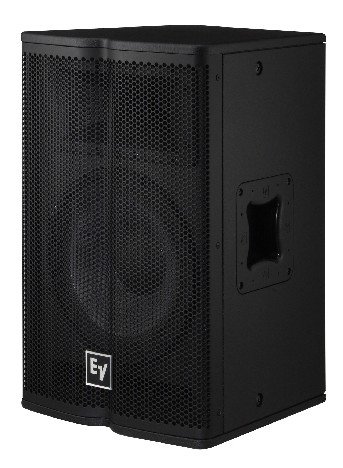

Electro-Voice Tour X TX1122 12" 2-Way 90x50 500W Passive Loudspeaker, Black

These high performance speakers feature EV's SMX woofers, which yield extraordinarily low levels of distortion without sacrificing sensitivity. The backbone grille design is aesthetically remarkable while also damage-resistant, and the input panels and handle were ergonomically designed for maximum comfort and utility. Steep slope analog crossovers with elliptical filters provide up to 36dB per octave slopes, greatly reducing acoustic transducer interaction for better sound and higher power handling. Finally, the floor monitors feature a patent-pending SST (Signal Synchronized Transducers) design which utilizes a split baffle layout, allowing the enclosure to be more compact and yielding near-perfect driver phase summation. Tour X speakers are ideal for bands, entertainers, DJ, karaoke, speech reinforcement, and more.

Specifications:

• Frequency Response (-3dB): 60 - 20000 Hz
• Frequency Response (-10dB): 45 - 20000 Hz
• Recommended High-Pass Frequency: 45 Hz
• Sensitivity @ 1W/1m: 97 dB
• Max SPL/1m (calculated): 130 dB
• Coverage (nominal -6dB) H°: 90 °
• Coverage (nominal -6dB) V°: 50 °
• Rotatable Horn: No
• System Power Handling (continuous/program/peak): 500/1000/2000 Watts
• LF Transducer: SMX2120
• HF Transducer: DH3
• Crossover Frequency: 1750 Hz
• Nominal Impedance (Passive): 8 Ohms
• Minimum Impedance: 5.4 Ohms
• Enclosure Material: Plywood and MDF with EVCOAT
• Suspension: (6) 3/8-inch threaded inserts
• Color: Black
• Flying: Yes
• Input Connections: Parallel Neutrik® NL4
• Internal Crossover: Yes
• Speaker Type: Full Range
• Net Weight: 44.53 lbs.
• Dimensions (HxWxD): 24.25" x 15.04" x 14.96"
