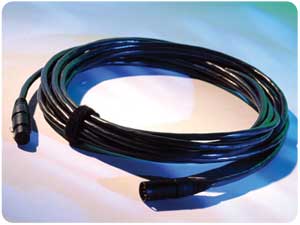

Apollo Design Technology AC-4CABLE-10
10' 4 Pin Lighting Accessory Cable


Standard data cabling for connecting various lighting related accessory products such as rotators and scrollers.
Learn More
Our Price: $33.20
List Price: $40.20
You save 17%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Apollo Design Technology AC-4CABLE-10

Similar Products

Standard data cabling for connecting various lighting related accessory products such as rotators and scrollers.

Apollo offers a high quality, durable cable with 4-pin XLR connectors for effective transfer of data and power from unit to unit.

Apollo Design Technology AC-4CABLE-10 Specifications:

  • Conductor:
    • Data pair: 22 AWG tinned, annealed copper stranded19/34
    • Power: 14 AWG bare, annealed copper stranded 41/30
  • Insulation:
    • Data Pair: Color coded high density polyethylene, Red/Green;Nom. Wall: 0.0095"; Min. Wall: 0.007"
    • Power: Color coded, PVC 80 deg. C,300 volt black & white; Nom. Wall: 0.015"; Min. Wall: 0.012"
  • Shield: Aluminum/mylar around 22 AWG pair, aluminum side in, 100% coverage
  • Drain: 24 AWG tinned, annealed stranded 7/32
  • Jacket:
    • Black PVC
    • Nom Wall: 0.035"
    • Elongation: 100%minimum
    • Tensile: 2,000 PSI minimum
  • O.D. Weight/m ft.: Nominal O.D.: 0.290"; Weight: 60 lbs per 1,000 ft
  • Operating Temp: Plus 80 deg. C, -20 deg. C
  • Conductivity: 15.5 ohm (max.) per 1,000 ft @ 25 deg. C
  • Impedance: Data Pair: 60 ohms calculated
  • Capacitance:
    • Data Pair: 27 pf/ft nom. cond. to cond.
    • 51 pf/ft.nom
