Lightronics Inc. AS42D
4-Channel Compact DMX Light Dimmer

OUR PART #:  AS-42D

The AS42D is a compact portable 4 channel light dimmer from Lightronics. It has a maximum capacity of 1200 Watts per channel and maximum total load capacity of 4800 Watts.
Learn More
Our Price: $450.00
List Price: $600.00
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lightronics Inc. AS42D
Qty:
In Stock

Similar Products

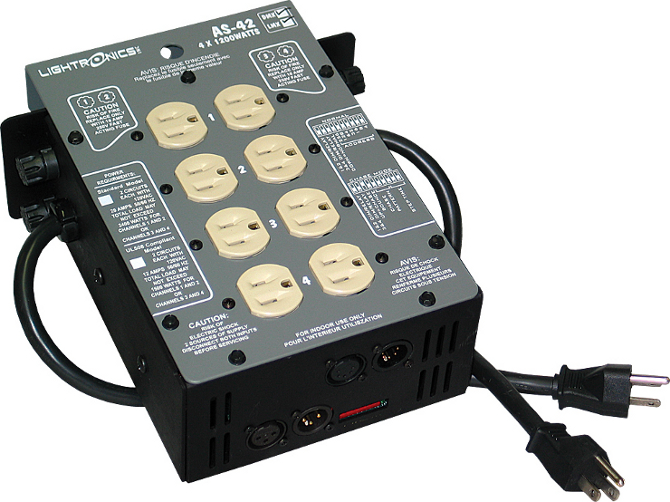

The AS42D is a compact portable 4 channel light dimmer from Lightronics. It has a maximum capacity of 1200 Watts per channel and maximum total load capacity of 4800 Watts. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS42D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.

Lightronics AS42D Features:

  • 4 Channels
  • 1200W per Channel
  • 8 Built-in Chases
  • DMX-512 & LMX-128
  • Relay Mode Switchable
  • Fuses
  • Edison Outputs
  • 120V

Lightronics AS42D Specificaions:

  • Channels: 4
  • Channel Capacity: 1200 Watts per Channel
  • Total Power: 4800 Watts
  • Control Protocol: DMX-512 and 3 Wire LMX-128
  • Control Connections:
    • Dual 5 Pin XLR, DMX
    • Dual 3 PinXLR, LMX
  • Power Requirements: 120VAC, Two 20 Amp Circuits
  • Power Input: Two Edison Plugs
  • Frequency: 50 or 60Hz
  • Fusing: 10 Amp each Channel
  • Preheat Voltage: Soft Start Control
  • Response Curve: Modified Square Law
  • Filter Rise Time: 350 Microseconds
  • Filter Max. Rate of Rise: 105 Milliamps / Microsecond
  • Response Time: 8.3 Milliseconds
  • Full Load Voltage Drop: 3 Volts
  • Conduction Angle Range: 180 Degrees
  • Efficiency: 97%
  • Size: 9.5”L x 8”W x 3 3/8”D
  • Weight: 6.7 Pounds
