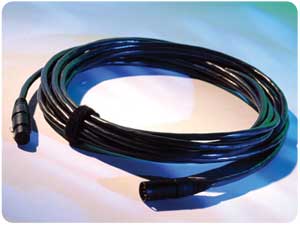

Apollo Design Technology AC-4CABLE-25
25' 4 Pin Lighting Accessory Cable

OUR PART #:  AC-4CABLE-25

Standard data cabling for connecting various lighting related accessory products such as rotators and scrollers.
Learn More
Our Price: $45.75
List Price: $55.40
You save 17%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Apollo Design Technology AC-4CABLE-25
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Standard data cabling for connecting various lighting related accessory products such as rotators and scrollers.

Apollo offers a high quality, durable cable with 4-pin XLR connectors for effective transfer of data and power from unit to unit.

Apollo Design Technology AC-4CABLE-25 Specifications:

  • Conductor
    Data pair: 22 AWG tinned, annealed copper stranded19/34
    Power: 14 AWG bare, annealed copper stranded 41/30
  • Insulation
    Data Pair: Color coded high density polyethylene, Red/Green;Nom. Wall: 0.0095"; Min. Wall: 0.007"
    Power: Color coded, PVC 80 deg. C,300 volt black & white; Nom. Wall: 0.015"; Min. Wall: 0.012"
  • Shield: Aluminum/mylar around 22 AWG pair, aluminum side in, 100% coverage
  • Drain: 24 AWG tinned, annealed stranded 7/32
  • Jacket
    Black PVC
    Nom Wall: 0.035"
    Elongation: 100%minimum
    Tensile: 2,000 PSI minimum
  • O.D. Weight/m ft.: Nominal O.D.: 0.290"; Weight: 60 lbs per 1,000 ft
  • Operating Temp: Plus 80 deg. C, -20 deg. C
  • Conductivity: 15.5 ohm (max.) per 1,000 ft @ 25 deg. C
  • Impedance: Data Pair: 60 ohms calculated
  • Capacitance
    Data Pair: 27 pf/ft nom. cond. to cond.
    51 pf/ft.nom

To be the first to review this item, click here.
