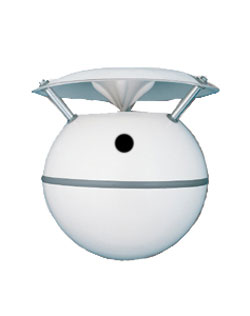

Soundsphere Loudspeakers Q-12A
Omni Speakers for High SPL

OUR PART #  Q-12A

Call for price! Not available online.


Recommended Accessories

The Q-12A omnidirectional loudspeaker provides a powerful sound system where clear voice announcements and high-fidelity foreground music at high sound pressure levels are required. The Q-12A is also available in a weatherproof configuration (Q-12AWR) for outdoor use, featuring a protective screen over the holes and driver to prevent birds from nesting in the speaker.

Along with its hemispherical coverage pattern, the Q-12A loudspeaker provides high sensitivity (97dB 1W/1m) and high SPL capability (121dB 250W/1m), and utilizes Soundsphere's exclusive patent-pending Poly-exponential Incidence Reflector. This loudspeaker can be mounted using a hanging kit or mounting bracket and comes in both standard and custom colors.

Applications include gymnasiums, ice rinks, transportation terminals, factories and nightclubs.

See spec sheet for details.

Specifications:

  • Sensitivity:  97dB SPL; 1 Watt/1 meter
  • Maximum SPL:  121dB; 250 Watts/1 meter
  • Power Handling:  250 Watts RMS
  • Frequency Response:  60Hz to 16kHz ± 6dB
  • Coverage:  180° vertical
  • 360° horizontal
  • Rated Impedance:  8 ohms
  • Weight:  39 lbs. (17.6 kg)
  • Size:  Height:  25" (635mm) Sphere Diameter:  22" (560mm) Reflector Diameter:  26" (660mm)
  • Driver:  12" true coaxial
    (LF and HF share common magnetic circuit)
  • Material:  Enclosure and reflector are fiberglass with gelcoatfinish; rust-resistant hardware
Hanging KitSoundsphere Loudspeakers HKL Hanging Kit

Three-way cable for single point suspension. Designed for the Q-12A and Q-15.

Call for price! Not available online.

Speaker, Sub-Bass Supplement SpeakerSoundsphere Loudspeakers Q-SB2 Speaker, Sub-Bass Supplement Speaker

The Q-SB2 is a sub-bass supplement unit for use in Q-12A systems where extended low frequency performance is required. Q-12 Combo systems that include a Q-SB2 create a single source of high fidelity, intelligible sound with deep, extended ...

Call for price! Not available online.

250 Watt Transformer Soundsphere Loudspeakers TX250 250 Watt Transformer

250 watt transformer with multiple power taps. For the Q-12A and Q-15.

Call for price! Not available online.

Beam Clamp for Q12A, Q15, Q-SB2Soundsphere Loudspeakers BCL Beam Clamp for Q12A, Q15, Q-SB2

Universal beam clamp for the Q-12A, Q-15, Q-SB2.

Call for price! Not available online.

Soundsphere Loudspeakers Q-12A
Omni Speakers for High SPL

OUR PART #  Q-12A

Product Information:

The Q-12A omnidirectional loudspeaker provides a powerful sound system where clear voice announcements and high-fidelity foreground music at high sound pressure levels are required. The Q-12A is also available in a weatherproof configuration (Q-12AWR) for outdoor use, featuring a protective screen over the holes and driver to prevent birds from nesting in the speaker.

Along with its hemispherical coverage pattern, the Q-12A loudspeaker provides high sensitivity (97dB 1W/1m) and high SPL capability (121dB 250W/1m), and utilizes Soundsphere's exclusive patent-pending Poly-exponential Incidence Reflector. This loudspeaker can be mounted using a hanging kit or mounting bracket and comes in both standard and custom colors.

Applications include gymnasiums, ice rinks, transportation terminals, factories and nightclubs.

See spec sheet for details.

Specifications:

  • Sensitivity:  97dB SPL; 1 Watt/1 meter
  • Maximum SPL:  121dB; 250 Watts/1 meter
  • Power Handling:  250 Watts RMS
  • Frequency Response:  60Hz to 16kHz ± 6dB
  • Coverage:  180° vertical
  • 360° horizontal
  • Rated Impedance:  8 ohms
  • Weight:  39 lbs. (17.6 kg)
  • Size:  Height:  25" (635mm) Sphere Diameter:  22" (560mm) Reflector Diameter:  26" (660mm)
  • Driver:  12" true coaxial
    (LF and HF share common magnetic circuit)
  • Material:  Enclosure and reflector are fiberglass with gelcoatfinish; rust-resistant hardware
Hanging KitSoundsphere Loudspeakers HKL Hanging Kit

Three-way cable for single point suspension. Designed for the Q-12A and Q-15.

Call for price! Not available online.

Speaker, Sub-Bass Supplement SpeakerSoundsphere Loudspeakers Q-SB2 Speaker, Sub-Bass Supplement Speaker

The Q-SB2 is a sub-bass supplement unit for use in Q-12A systems where extended low frequency performance is required. Q-12 Combo systems that include a Q-SB2 create a single source of high fidelity, intelligible sound with deep, extended ...

Call for price! Not available online.

250 Watt Transformer Soundsphere Loudspeakers TX250 250 Watt Transformer

250 watt transformer with multiple power taps. For the Q-12A and Q-15.

Call for price! Not available online.

Beam Clamp for Q12A, Q15, Q-SB2Soundsphere Loudspeakers BCL Beam Clamp for Q12A, Q15, Q-SB2

Universal beam clamp for the Q-12A, Q-15, Q-SB2.

Call for price! Not available online.
