Neutrik NF2D-B-6
Phono RCA Phono Socket with Blue Isolation Washer

OUR PART #:  NF2D-BL

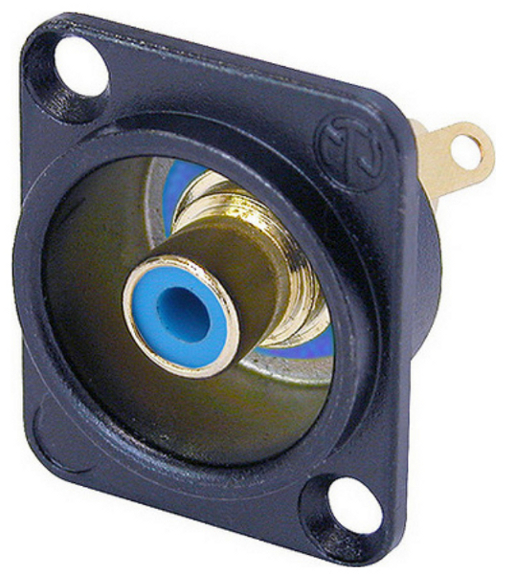

The Neutrik NF2D-B-6 is a phono socket in a black chrome D-shape housing with a blue isolation washer. Solder version.
Learn More
Sale Price: $3.00
List Price: $5.62
You save 47%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NF2D-B-6
Qty:
Similar Products

The Neutrik NF2D-B-6 is a phono socket in a black chrome D-shape housing with a blue isolation washer. Solder version.

Neutrik NF2D-B-6 Specifications:

  • Electrical:
    • Capacitance between contacts: </= 9 pF
    • Contact resistance: <5G mOhm (inner)
    • Dielectric strength: 0.5 kVdc
    • Insulation resistance: < 5 GOhm
    • Rated current per contact: 16 A
    • Rated voltage: 50 V
  • Mechanical:
    • Lifetime: > 2000 mating cycles
    • Wiring: Solder contacts
    • Mounting direction: front
    • Chassis shape: D
  • Material:
    • Contact plating: 5 µm Au over 5 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Shell: Zinc diecast (ZnAl4Cu1)
  • Environmental:
    • Flammability: UL 94 HB
    • Standard compliance: IEC 601-14
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
