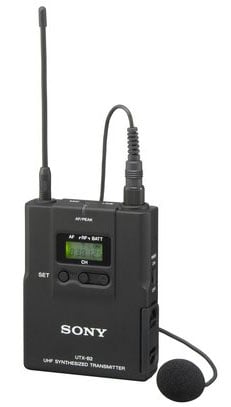

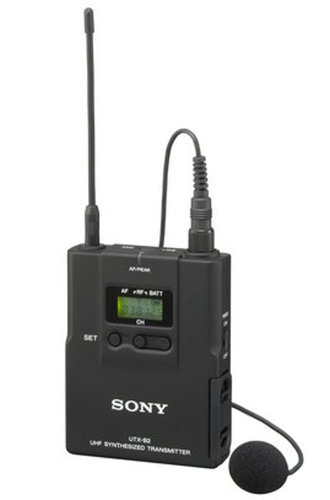

Sony UTX-B2X/4244
Bodypack Transmitter with Uni-Lapel Mic

OUR PART #  UTX-B2X/4244

Our Price: $364.74
List Price: $514.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The UWP series compact and lightweight bodypack transmitter comes supplied with an uni-directional lavalier microphone. The UTX-B2X/4244 operates on UHF TV channels 42,43,44 and 45. This bodypack transmitter (with uni lav mic) is ideally suited for AV presentation.

Features:

  • Compact and lightweight design
  • Attenuator function allows adjustment of the audio-input level to suit each user's voice
  • Selectable RF output level: 5 mW (suitable for simultaneous multichannel operation) or 30 mW (for long distance transmission)
  • 8 hours of continuous operation with two AA-size alkaline batteries
  • LCD screen provides extensive set up information
  • 3-pole mini-jack input connector with lock mechanism accepts the output of supplied lavalier microphone

Specifications:

  • Oscillator: Crystal-controlled PLL synthesizer
  • Weight: 5.1 oz including batteries
  • Type of emission: F3E
  • Power Requirements: DC 3.0V (two AA-size alkaline batteries)
  • Dimensions: 2 1/2 x 3 1/4 x 3/4 inches (excluding antennas)
  • Carrier frequencies: 638 MHz to 662 MHz (TV channels 42,43,44,45), users may choose from 188 frequencies
  • S/N Ratio: 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
  • RF power output: 30mW or 5mW (selectable)
  • Antenna: 1/4 wave length wire
  • Pilot tone signal: 32 kHz
  • Frequency response: 50 Hz to 18 kHz (typical)
  • Frequency Range: 638 MHz to 662 MHz (TV channels 42,43,44,45), users may choose from 188 frequencies
  • Reference deviation: +/- 7 kHz (-60dBV, 1 kHz input)
  • Signal-to-noise ratio: 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
  • Audio Input Level: - 60 dBV (at 0 dB attentuator level)
  • LCD Indicator: Operating channel number/frequency, attenuator level, RF-output level (high-low), audio input status, transmitter battery status and accumulated operating time
  • Audio attenuator adjustment range: 0 to 21 dB (in 3 dB steps)
  • Local Oscillators: Crystal-controlled PLL synthesizer
  • Microphone Capsule: Electret condenser, uni-directional
  • Audio input connector: 3-pole mini jack (x1)
  • LED Indicator: Power status
  • Tone Signal: 32 kHz
  • Type of Reception: F3E
  • Battery life: 8 hours with Sony AA-size alkaline batteries
  • Dimensions (W x H x D): 2 1/2 x 3 1/4 x 3/4 inches (excluding antennas)
  • Mass: 5.1 oz including batteries

Sony UTX-B2X/4244
Bodypack Transmitter with Uni-Lapel Mic

OUR PART #  UTX-B2X/4244

Product Information:

The UWP series compact and lightweight bodypack transmitter comes supplied with an uni-directional lavalier microphone. The UTX-B2X/4244 operates on UHF TV channels 42,43,44 and 45. This bodypack transmitter (with uni lav mic) is ideally suited for AV presentation.

Features:

  • Compact and lightweight design
  • Attenuator function allows adjustment of the audio-input level to suit each user's voice
  • Selectable RF output level: 5 mW (suitable for simultaneous multichannel operation) or 30 mW (for long distance transmission)
  • 8 hours of continuous operation with two AA-size alkaline batteries
  • LCD screen provides extensive set up information
  • 3-pole mini-jack input connector with lock mechanism accepts the output of supplied lavalier microphone

Specifications:

  • Oscillator: Crystal-controlled PLL synthesizer
  • Weight: 5.1 oz including batteries
  • Type of emission: F3E
  • Power Requirements: DC 3.0V (two AA-size alkaline batteries)
  • Dimensions: 2 1/2 x 3 1/4 x 3/4 inches (excluding antennas)
  • Carrier frequencies: 638 MHz to 662 MHz (TV channels 42,43,44,45), users may choose from 188 frequencies
  • S/N Ratio: 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
  • RF power output: 30mW or 5mW (selectable)
  • Antenna: 1/4 wave length wire
  • Pilot tone signal: 32 kHz
  • Frequency response: 50 Hz to 18 kHz (typical)
  • Frequency Range: 638 MHz to 662 MHz (TV channels 42,43,44,45), users may choose from 188 frequencies
  • Reference deviation: +/- 7 kHz (-60dBV, 1 kHz input)
  • Signal-to-noise ratio: 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
  • Audio Input Level: - 60 dBV (at 0 dB attentuator level)
  • LCD Indicator: Operating channel number/frequency, attenuator level, RF-output level (high-low), audio input status, transmitter battery status and accumulated operating time
  • Audio attenuator adjustment range: 0 to 21 dB (in 3 dB steps)
  • Local Oscillators: Crystal-controlled PLL synthesizer
  • Microphone Capsule: Electret condenser, uni-directional
  • Audio input connector: 3-pole mini jack (x1)
  • LED Indicator: Power status
  • Tone Signal: 32 kHz
  • Type of Reception: F3E
  • Battery life: 8 hours with Sony AA-size alkaline batteries
  • Dimensions (W x H x D): 2 1/2 x 3 1/4 x 3/4 inches (excluding antennas)
  • Mass: 5.1 oz including batteries
