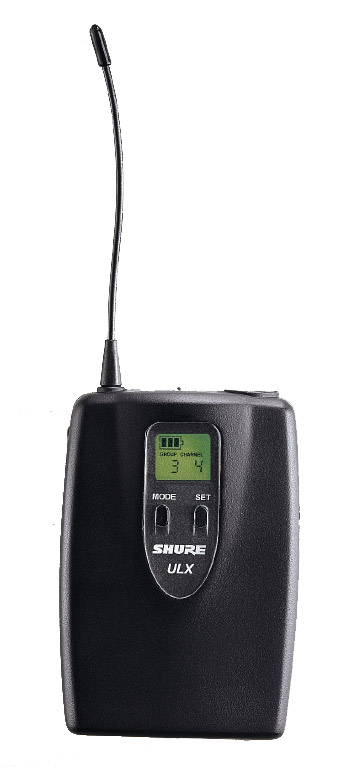

Shure ULX1-G3
UHF Bodypack Transmitter 470 - 505 MHz

OUR PART #  ULX1-G3

Our Price: $193.00
List Price: $241.00
You save 20%! (Low Price Guarantee)
In Stock

Recommended Accessories

The Shure ULX1 low-profile, highly durable body-pack has all the characteristics to meet the demands of high performance. For use with headworn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility. The ULX1-G3 offers a frequency range of 470-505 MHz.

Shure ULX1-G3 Features:

  • Three-segment battery fuel gauge
  • Frequency and power lockout
  • Flexible 1/4 wave antenna
  • TA4F mini four-pin input connector
  • Backlit LCD display shows group and channel setting
  • Adustable audio gain control
  • Input attenuation switch (selects 0 dB or -20 dB attenuation)
  • PEAK icon appears when audio input overloads the transmitter
  • Power on/off switch
  • 8 hour battery life (9V battery)
  • 300 foot (100m) operating range

Shure ULX1-G3 Specifications:

  • Gain Adjustment Range: 25 dB
  • Attenuation Switch: 0, -20 dB
  • Dimensions (H x W x D): 3.86" x 2.68" x 1.10"
  • Weight: 2.8 oz without batteries
  • Power Requirements: 9 V alkaline
  • Input Impedance: 1 MOhm
  • RF Output Power: 30 mW maximum (varies by region)
  • Connector; 4-Pin male mini connector (TA4M)
  • Configuration: Unbalanced, active
  • Impedance:
    • Microphone: 75 kOhms
    • WA302: 1 MOhm
  • Maximum Input Level: 1 kHz at 1% THD
    • Microphone: -4 dBV (1.82 Vp-p)
    • WA302:
      • PAD OFF (0dB): 5 dBV (5 Vp-p)
      • PAD ON (-20dB): 25 dBV (50 Vp-p)
  • Pin Assignments: TA4M
    • 1: ground (cable shield)
    • 2: + 5 V Bias
    • 3: audio
    • 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
