Apollo Design Technology AC-4CABLE-50 50' 4 Pin Accessory Cable

OUR PART #: AC-4CABLE-50 MFR #: AC-4CABLE-50

Copied to clipboard

Standard data cabling for connecting various lighting related accessory products such as rotators and scrollers. ...Read more

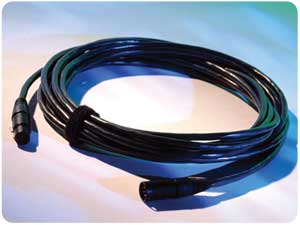

Apollo Design Technology AC-4CABLE-50 50' 4 Pin Accessory Cable Image 1
Apollo Design Technology AC-4CABLE-50 50' 4 Pin Accessory Cable
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Standard data cabling for connecting various lighting related accessory products such as rotators and scrollers.

Apollo offers a high quality, durable cable with 4-pin XLR connectors for effective transfer of data and power from unit to unit.

Apollo Design Technology AC-4CABLE-50 Specifications:

  • Conductor:
    • Data pair; 22 AWG tinned, annealed copper stranded19/34
    • Power: 14 AWG bare, annealed copper stranded 41/30
  • Insulation:
    • Data Pair: color coded high density polyethylene,Red/Green
      • Nom. Wall: 0.0095"
      • Min. Wall: 0.007"
    • Power: Colorcoded, PVC 80ºC, 300 volt black & white
      • Nom. Wall: 0.015"
      • Min.Wall: 0.012"
    • Shield: Aluminum/mylar around 22 AWG pair, aluminum side in, 100% coverage
    • Drain: 24 AWG tinned, annealed stranded 7/32
    • Jacket:
      • Black PVC
      • Nom Wall: 0.035"
      • Elongation: 100%minimum
      • Tensile: 2,000 PSI minimum
    • O.D. Weight/m ft.: Nominal O.D.: 0.290" Weight: 60 lbs per 1,000 ft
    • Operating Temp.: 80ºC to -20ºC
    • Conductivity: 15.5 ohm (max.) per 1,000 ft @ 25ºC
    • Impedance: Data Pair: 60 ohms calculated
    • Capacitance:
    • Data Pair: 27 pf/ft nom. cond. to cond.
    • 51 pf/ft.nom.
