Product Overview

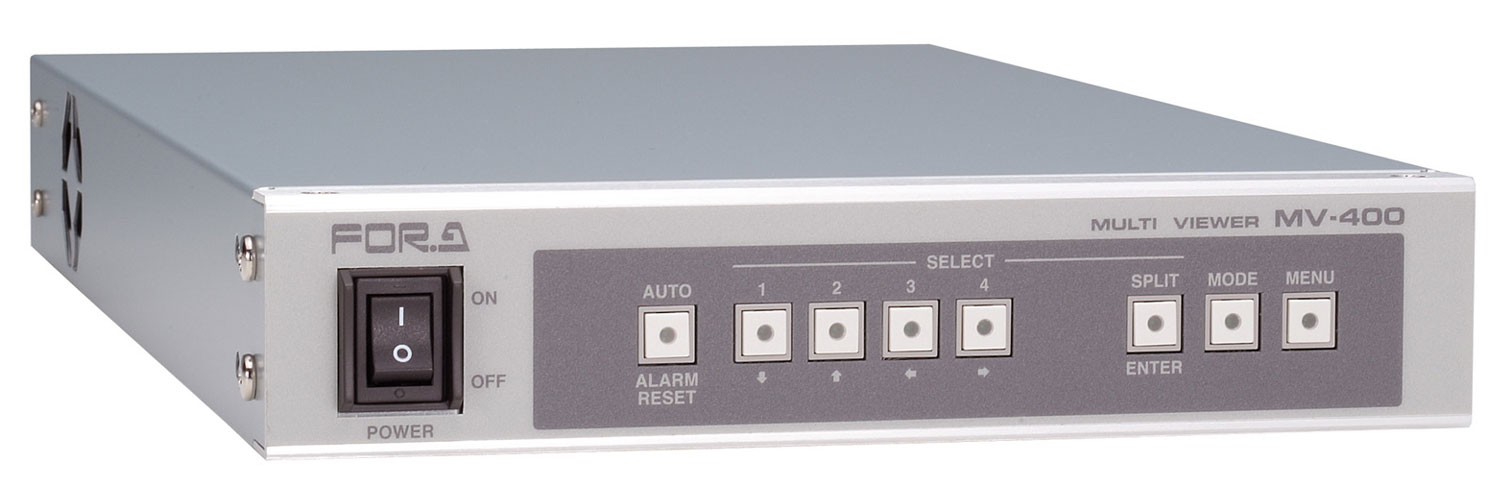

With the MV-400 Multi Viewer, you can monitor up to four channels of camera video with a single monitor. In addition to regular video output, the MV-400 also features high-definition monitoring in SXGA and remote monitoring function over a network.
Features:
- Features 2 and 4 split-screen modes
- Up to four asynchronous composite signal (color, B/W) inputs
- In addition to regular video output, includes SXGA high-definition output and video transmission function using a network
- In SXGA high-definition output, video for each channel can be displayed with virtually no reduction in size
- Title display function (up to 8 alphanumeric characters per channel)
- Includes parallel remote input terminal
- Allows remote control over a network even when high-definition output is selected (An additional option is required for using simultaneously a high definition mode and video transmission mode.)
Specifications:
- Standard: NTSC or PAL (Auto detect)
- Video Input: Analog Composite: Color or B/W, 1.0Vp-p, 75 ohm or loopthrough (auto termination), 4ea., BNC
- Video Output:
- - Analog Composite 1: 1.0Vp-p, 75 ohm, BNC, Screen Displays: Full / 2 split / Quad split
- - Analog Composite 2: 1.0Vp-p, 75 ohm, BNC, Screen Displays: fixed quad split
- - RGB: 0.7Vp-p ±0.1V, 75W, 1ea., 15-pin D-sub (female)
- (An additional option is required for using simultaneously a high definition mode and video transmission mode.)
- Resolution: SXGA (1280 x 1024 pixels) *The video area is 1280 x 960 pixels.
- Screen Displays: Full / 2 split / Quad split
- Interface:
- - LAN: 100Base-TX, RJ-45
- *Following or higher spec. PC is recommended for video transmission.
- - CPU: Better than Intel Pentium 4.3GHz, Built in memory: Better than 512MB
- - RS-232C: D-sub 25-pin (female) Asynchronous, Full duplex, Transmission speed: 9600 bps, Data length: 8 bits, Stop bit: 1 bit, Parity: None
- - REMOTE: D-sub 25-pin (female)
- - TTL negative logic or make contact input, Pulse width: 100 ms or more
- Title Display: 8 characters/1 Line, ea., input
- Backup: Save to EEPROM
- Temperature / Humidity: 0ºC - 40ºC / 30% - 90% (no condensation)
- Power / Consumption: 100VAC - 240VAC±10% 50/60Hz / 18VA (13W) : 100VAC, 24VA (14W) : 200VAC
- Dimensions / Weight:
- - 212 (W) x 44 (H) x 350 (D) mm EIA1RU half size / Approx. 3.0kg
- - 8.35 (W) X 1.73 (H) X 13.78 (D) in / Approx. 6.61 lbs
- Accessories: Operation manual, AC cord, Remote control software (for Windows)
- Option: Single mount or dual mount rack brackets / MV-40EX: Expantion option
