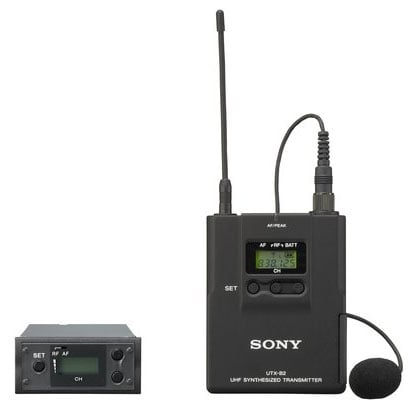

Sony UWP-X7/3032
UHF Lav Mic with tuner module

OUR PART #  UWP-X7/3032

Our Price: $547.09
List Price: $771.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

UWP Series UHF synthesized wireless microphone system. Package includes a lavalier microphone, bodypack transmitter and tuner module. Channels 30 to 33. The UWP-X7 includes extremely robust metal construction, mic/line input selection on the bodypack transmitter and a uni-directional lav microphone. UWP Series transmitters and receivers can also be purchased separately. See brochure for details.

Features:

  • Consists of a uni lavalier microphone, body pack transmitter and tuner module
  • Suitable for use in PA systems
  • Supplied with a microphone windscreen and holder-clip as well as a belt clip
  • Tuner module can be installed in MB-X6 tuner frame or SRP Series powered mixers

Specifications:

TUNER MODULE

  • Oscillator: Crystal-controlled PLL synthesizer
  • Type of Reception: Space diversity
  • Receiving Frequencies: 566 MH to 590 MHz (TV channels30 to 33) Users may choose from 188 frequencies on each model
  • Antenna: 1/4 wave length wire
  • Pilot Tone Signal: 32 kHz
  • RF Squelch Level: 25 dBµ
  • De-emphasis: 50µs
  • Frequency Response: 50 Hz to 18 kHz
  • Reference Deviation: ±5 kHz (at 1kHz modulation)
  • Signal-To-Noise Ratio: 60 dB or more (±5 kHzdeviation at 1 kHz modulation, A-weighted)
  • Indicators (LCD, LED): Operating channelnumber/frequency, audio-output status, RF-input level, RF-input status
  • Power Requirements: DC 9.0 V
  • Dimensions (W x H x D): 2-1/2 x 1-1/16 x 4-7/8 inches
  • Weight: Approx. 5.3 oz

BODYPACK TRANSMITTER

  • Oscillator: Crystal-controlled PLL synthesizer
  • Type Of Emission: F3E
  • Carrier Frequencies: 566 MH to 590 MHz (TV channels30 to 33) Users may choose from 188 frequencies on each model
  • RF Power Output: 30mW or 5 mW (selectable)
  • Antenna: 1/4 wave length wire
  • Pilot Tone Signal: 32 kHz
  • Frequency Response: 40 Hz to 18kHz
  • Reference Deviation: ±7 kHz
  • Signal-To-Noise Ratio: 60 dB or more (±5 kHzdeviation at 1 kHz modulation, A-weighted)
  • Audio Attenuator Adjustment Range: 0 to 21 dB (in 3dB steps)
  • Audio Input Level: -60 dBV (at 0 dB attenuator level)
  • Audio Input Connector: 3-pole mini jack
  • Indicators (LCD, LED): Channel number/freq,attenuator, RF output, audio-input, battery, operating time, AF/Peak
  • Power Requirements: DC 3.0 V (with two AA-sizealkaline (LR6) batteries)
  • Battery Life: Approx. 8 hours with Sony AA-sizealkaline (LR6) batteries at 25° C (77° F) at 30 mW output
  • Dimensions (W x H x D) Excluding Antenna: 2-1/2 x3-1/4 x 3/4 inches
  • Weight: Approx. 5.1 oz including batteries
Tuner Module Only Sony URX-M2/3032 Tuner Module Only

The UWP series compact plug-in tuner module provides space diversity reception with stable RF reception. The URX-M2/3032 operates on UHF TV channels 30,31,32 and 33. This UWP series plug-in tuner module can be used with the Sony MB-X6 ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$364.74List Price: $514.00You save 29%!

Bodypack Transmitter with Uni-Lapel MicSony UTX-B2X/3032 Bodypack Transmitter with Uni-Lapel Mic

The UWP series compact and lightweight bodypack transmitter comes supplied with an uni-directional lavalier microphone. The UTX-B2X/3032 operates on UHF TV channels 30, 31, 32 and 33. This bodypack transmitter (with uni lav mic) is ideally ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$364.74List Price: $514.00You save 29%!
