Yamaha DM1000VCM Compact Digital Console

OUR PART #: DM1000VCM MFR #: DM1000VCM

Copied to clipboard

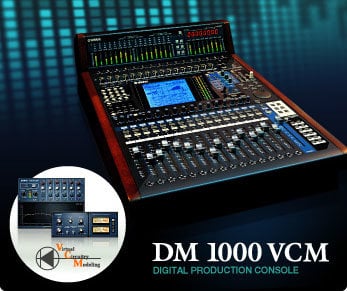

Yamaha DM1000VCM Compact Digital Console Image 1
Yamaha DM1000VCM Compact Digital Console Image 2
Yamaha DM1000VCM Compact Digital Console Image 3
Yamaha DM1000VCM Compact Digital Console Image 4
Yamaha DM1000VCM Compact Digital Console
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Yamaha DM1000VCM Compact Digital Console

The DM1000VCM 48 input/18 mixing bus digital production console is an updated version of the original DM1000 with five impressive plug-in packages added. It’s equipped with head amps evolved from those used on the DM2000 and 02R96 analog inputs to provide amazing sound quality with an impressive 110 dB dynamic range from its 24-bit AD/DA converter.

The DM1000VCM incorporates the well-reviewed REV-X reverb algorithm from the SPX2000 and warm analog-sounding VCM plug-ins such as compressor, EQ, tape saturation, and guitar effects. This console is an excellent choice for production and live sound reinforcement applications, empowering users to creatively express themselves without having to use outboard equipment or vintage effects.

The DM1000VCM is also compliant with the THX pm3 standard for surround sound equipment so it can provide surround functions that support post-production and multi-channel broadcasting applications.

The DM1000VCM is a powerful and compact console that provides the outstanding usability, flexibility, and expandability you expect and need in a digital mixer.

Yamaha DM1000VCM Includes:

  • DM1000VCM Digital Production Console

Yamaha DM1000VCM Features:

  • 48 input, 18 bus mix capacity at 96kHz
  • 24-bit, 96Khz audio. All analog inputs and outputs use 24-bit AD/DA converters and high-performance head amplifiers to provide uncolored pre-amplification prior to A/D conversion
  • Flexible connectivity options to cover a wide variety of applications.
  • Graphical on-screen “digital patching” displays allow easy system configurations that can be saved for later recall
  • Four internal multi-effect processors including surround effects
  • 16 100mm touch-sensitive motorized faders for access to all 48 inputs. Inputs are divided into three layers, 1-16, 17-32, and 22-48.
  • Scene memory and automix capability with 1/4-frame resolution for efficient workflow
  • Included DM1000 editor software for Window or Mac
  • Seamlessly integrates with your DAW or digital recorder to create an advanced digital production environment
  • Two YGDAI (Yamaha General Digital Audio Interface) I/O expansion slots support up to 16 additional channels in multiple formats as well as a range of other interface cards

Yamaha DM1000VCM Specifications:

  • Dimensions: 16.93" x 7.87 x 22.24" (430 x 200 x 565 mm)
  • Weight: 44 lbs (20 kg)
  • Power requirements: AC100V, 120V or 220-240V: 50-60Hz
  • Power Consumption: 135W
