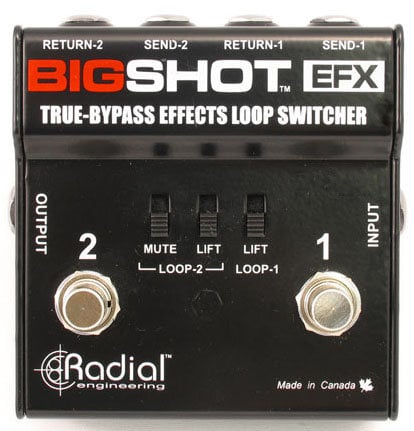

Radial Engineering Bigshot EFX TRUe Bypass Effects Loop Switcher Pedal

Radial Engineering's BigShot EFX true-bypass effect loop selector is a foot activated switch that enables guitarists to insert effects pedals into their signal chain and remove them when not in use. Because the i/o is passive and 100% true-bypass, it addresses the needs of the most demanding purist.

It features two separate effects loops, each equipped with foot switch selector, 1/4" input and output connectors and ground lift to reduce hum and buzz caused by ground loops. The 2nd loop out can be set up at a mute switch to allow for silent tuning or instrument changeovers. The simple design makes it easy to use, and it's small footprint and passive operation means it'll fit on any pedalboard. Made from 14-gauge steel, the Radial BigShot EFX is built tough to handle years of abuse.

For the guitarist that needs an efficient bypass effects switch, look no further than the Radial BigShot EFX!

Features

• Switch between two separate effects loops or run both at the same time
• Passive true-bypass for noiseless operation
• Each effects loop features a separate ground lift
• Mute switch on loop 2 for silent tuning or instrument switching

Specifications

• Audio Circuit Type: Passive, true-bypass
• Frequency Response: 20 Hz - 20 kHz
• Gain: -0.3 dB
• Connections:
  • Input: 3 x 1/4"
  • Output: 3 x 1/4"
• Construction: 14-gauge steel
• Finish: Durable powder coat
• Dimensions (H x W x D): 2" x 3.9" x 3.6"
• Weight: 1.25 lbs.
• Conditions: For use in dry locations only, 5-40°C
