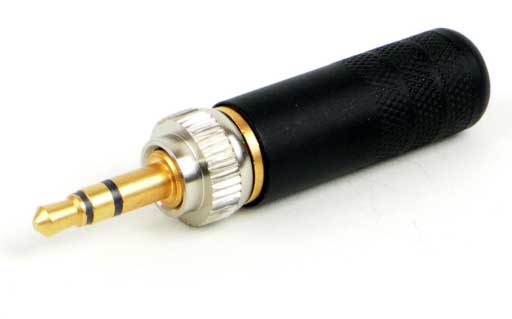

Switchcraft 35HDLBAU
3.5mm Locking Stereo Plug, Black Handle and Gold Plug

OUR PART #  35HDLBAU

Our Price: $6.54
List Price: $9.02
Save up to 40% when you order by quantity!
Buy 25 @ $6.31 ea.
Buy 50 @ $5.86 ea.
Buy 100 @ $5.41 ea.
(Low Price Guarantee)
In Stock

3.5mm locking stereo plug with black handle and gold plug. Handle is 0.25.

Features:

  • Locking collar secures plug to threaded bushing with M6 x 0.5 thread
  • One piece tip rod for ultra-reliability
  • Heavy duty large cable clamp
  • Handle .250 cable opening
  • Available in bulk or individually bagged
  • Complements current line of Switchcraft 3.5mm jacks with threaded bushings

Specifications:

  • Contact Resistance:  20 MilliOhms Max.
  • Dielectric Withstanding Voltage:  250 VAC Min.
  • Insulation Resistance @ 500 VDC:  2,000 MegaOhms Min.
  • Max. Working Voltage:  250 VAC; 140VDC
  • Current Carry @ Working Voltage:  4 Amps
  • Insertion/Withdrawal Force:  Typical 2.5/2 Lbs.
  • Temperature Range:  -20ºC to 85ºC (operating)
  • Thermal Shock:  MIL-STD-202, Method 107G
  • Vibration:  MIL-STD-202, Method 201
  • Life:  5,000 Cycles
  • Cable Size:  .250 Dia. Max.

Switchcraft 35HDLBAU
3.5mm Locking Stereo Plug, Black Handle and Gold Plug

OUR PART #  35HDLBAU

Product Information:

3.5mm locking stereo plug with black handle and gold plug. Handle is 0.25.

Features:

  • Locking collar secures plug to threaded bushing with M6 x 0.5 thread
  • One piece tip rod for ultra-reliability
  • Heavy duty large cable clamp
  • Handle .250 cable opening
  • Available in bulk or individually bagged
  • Complements current line of Switchcraft 3.5mm jacks with threaded bushings

Specifications:

  • Contact Resistance:  20 MilliOhms Max.
  • Dielectric Withstanding Voltage:  250 VAC Min.
  • Insulation Resistance @ 500 VDC:  2,000 MegaOhms Min.
  • Max. Working Voltage:  250 VAC; 140VDC
  • Current Carry @ Working Voltage:  4 Amps
  • Insertion/Withdrawal Force:  Typical 2.5/2 Lbs.
  • Temperature Range:  -20ºC to 85ºC (operating)
  • Thermal Shock:  MIL-STD-202, Method 107G
  • Vibration:  MIL-STD-202, Method 201
  • Life:  5,000 Cycles
  • Cable Size:  .250 Dia. Max.
