Listen Technologies LP-3CV-072
3-Channel 72 MHz Assitive Listening Package with 4 Receivers

OUR PART #  VALUE-PACK

Our Price: $599.00
List Price: $675.00
You save 11%! (Low Price Guarantee)
Qty:

Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

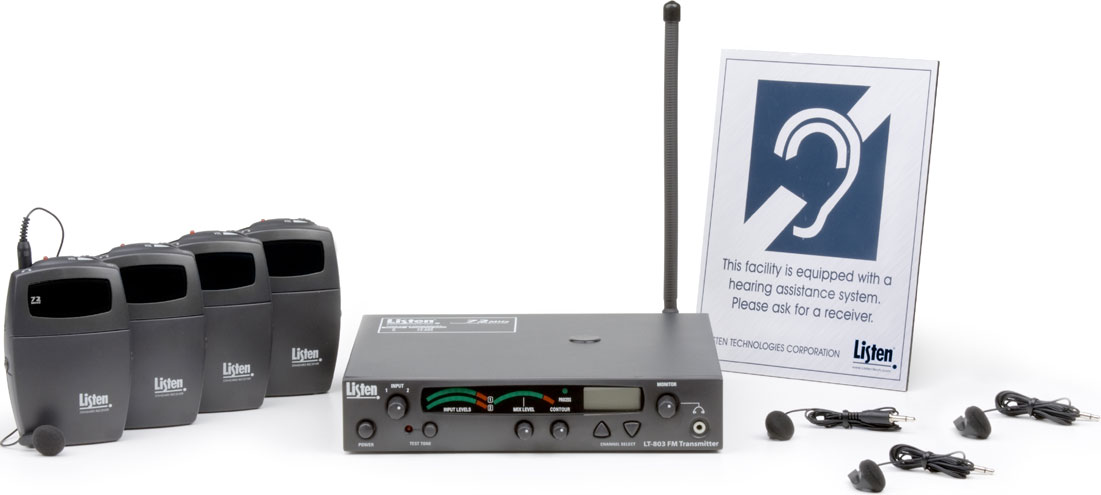

The Listen Technologies LP-3CV-072 is a 72 MHz 3-channel assistive listening package that includes one transmitter and four receivers with single-ear earbuds, and is designed to provide an easy-to-use and economical solution for assistive listening applications. This package is ideal in venues such as houses of worship, classrooms, theatres, employee training sessions, business meetings, and more.

Listen Technologies LP-3CV-072 Includes:

  • One (1) LT-803-072 Stationary 3-Channel RF Transmitter
  • One (1) LA-123 90° Helical Antenna (72 MHz)
  • Four (4) LR-200-072 Standard 3-Channel RF Receiver
  • Four (4) LA-161 Single Ear Bud
  • One (1) LA-304 Assistive Listening Notification Signage Kit

Listen Technologies LP-3CV-072 Features:

  • Economical price – backed by Listen’s exceptional service and support.
  • Three channels – makes it simple to install, manage and use.
  • Limited lifetime warranty.
  • Reliable clear sound quality - 62 dB SNR.
  • Ensures public venues meet ADA requirements.
  • 30-day no obligation demonstrations available (For further information on a demonstration, please contact your Sales Pro)

Listen Technologies LP-3CV-072 Specifications:

  • Overall System:
    • Audio:
      • Frequency Response: 50 Hz - 15 kHz (±3 dB)
      • Signal-to-Noise Ratio: 62 dB (A-weighted)
      • Distortion: <2% total harmonic distortion (THD) at 80% deviation
    • Environmental:
      • Operation Temperature: 14° F to 104° F (-10° C to +40° C)
      • Storage Temperature: -4° F to 122° F (-20° C to +50° C)
      • Relative Humidity: 0 to 95% relative humidity, non-condensing
    • Compliance:
      • RF: FCC Part 15
    • RF:
      • Number of Channels: Three (3) Wide-Band - (A) 72.100, (E) 72.900, (H) 75.900
      • Transmission Range: 600 ft. (182.88 m) (with LA-123 antenna)
    • Physical:
      • Dimensions: Box Dimensions - 18" x 12" x 3" (45.72 x 30.48 x 7.62 cm)
      • Shipping Weight: 7 lbs. (3.1 kg)
  • LT-803-072 Transmitter:
    • Audio:
      • Frequency Response: 50 Hz - 15 kHz (±3 dB)
      • Signal-to-Noise Ratio: 62 dB (A-Weighted)
      • Distortion: <2% total harmonic distortion (THD) at 80% deviation
      • Audio Input 1: Rear panel, one (1) Female XLR and 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC
      • Audio Input 2: Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohm
      • Audio Processing: Compression can be turned on/off. Slope internally adjustable from 1:1 to 4:1. Default 2:1
      • Contour: Cuts and boosts frequencies above 5 kHz
      • Audio Output: Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm
      • Headphone Output: Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm
    • Controls:
      • User Controls: Front Panel: Power, Test Tone on/off, Channel up/down, Input Levels, Mix Level, Contour, Monitor volume control Rear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high)
      • Internal Adjustments: Compression ratio for audio processor
      • Programming: Process on/off, channel lock
    • Indicators:
      • Audio Input Status LEDs: Indicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red)
      • Processing: Indicated by a green LED when on (front panel)
      • RF Power: Indicated on the LCD (low, mid, high)
      • LCD: Channel Designation, lock status, RF power level (front panel)
      • Test Tone: Red LED illuminates when test tone is enabled.
    • RF:
      • Antenna Connector: BNC
      • Frequency Range: (A) 72.100, (E) 72.900, (H) 75.900
      • Number of Channels: 3 wide band
      • Frequency Accuracy: ± .005% stability 32 to 122º (0 to 50ºC)
      • Transmitter Stability: 50 PPM
      • Transmission Range: Up to 1,500 ft. (457.20 m)
      • Output Power: 80,000 uV at 3 m
      • Antenna Type: Various antennas available
    • Power:
      • Power Supply: In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards)
      • Power Supply Input: 100-240 VAC, 50-60 Hz, 0.4 A
      • Power Supply Output: 12 VDC, 1.3 A, 15.6 W
      • Power Supply Connector: 0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel type
      • Compliance: UL, CE, GS, TÜV, RoHS
    • Physical:
      • Height: 1.75: (4.5 cm)
      • Width:  8.50" (21.5 cm)
      • Depth: 9.13" (23 cm)
      • Color: Dark Grey with white silk screening
      • Weight: 2.6 lbs. (1.2 kg)
      • Unit Weight with Power Supply: 4.5 lbs. (2.0 kg)
      • Shipping Weight: 6.0 lbs. (2.7 kg)
      • Rack Mounting: One (1) rack space height, 1/2 rack space wide. One (1) or two (2) transmitters can be mounted in one rack space,optional rack mount (LA-326)
    • Environmental:
      • Temperature - Operation:  -10 ºC (14 ºF) to +40 ºC (104 ºF)
      • Temperature - Storage: -20 ºC (-4 ºF) to +50 ºC (122 ºF)
      • Relative Humidity: 0 to 95% relative humidity, non condensing
    • Compliance:
      • RF: FCC Part 15, Part 90, Industry Canada
  • LR-200-072 Receiver:
    • Audio:
      • Frequency Response: 50 Hz - 15 kHz (±3 dB)
      • Signal-to-Noise Ratio: 62 dB (A Weighted)
      • Distortion: <2% total harmonic distortion (THD) at 80% deviation
      • Output/s: One (1) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm
    • Controls:
      • User Controls: ON/OFF, volume Set Up: Alkaline/NiMH batteries, channel swtich Manually lockable door
    • Indicators:
      • LEDs: Red, illuminated when unit is on or to indicate charging, flashes when batteries are low
      • LCD: None
    • RF:
      • Number of Channels: Three (3) Wide Band - (A) 72.100, (E) 72.900, (H) 75.900
      • Sensitivity: 0.6uV typical, 1 uV maximum for 12 dB sinad
      • Frequency Accuracy: ±0.005% stability 32 to 122 ºF (0 to 50 ºC)
      • Antenna Type: Uses earphone cable
      • Squelch: None
    • Power:
      • Battery Type: Two (2) AA batteries, alkaline or NiMH
      • Battery Life: 120 hours alkaline (LA-361), 75 hours NiMH rechargeable (LA-362)
      • Battery Charging Time: Fully automatic, 10-12 hours under normal use
      • Power Supply: I/P 120VAC; O/P 7.5VDC 250 mA, drop in contact points for use with charging cases, power supply not included (LA-202)
      • Power Supply Connector: 2.3mm OD by 0.7mm ID, barrel type connector 7.5 VDC, center positive <250mA, drop in contact points for use with Listen charging cases
    • Physical:
      • Dimensions: 4.25" H x 2.75" W x 1.50" D (10.8 x 7.0 x 3.8 cm)
      • Color: Dark grey with white silk screening and dark lens
      • Weight: 3.1 oz (88 g)
      • Unit Weight with Batteries: 5.2 oz (147 g)
      • Shipping Weight: 1.0 lbs. (0.5 kg)
    • Environmental:
      • Temperature - Operation: -10 ºC (14 ºF) to +40 ºC (104 ºF)
      • Temperature - Storage: -20 ºC (-4 ºF) to +50 ºC (122 ºF)
      • Relative Humidity: 0 to 95% relative humidity, non-condensing
    • Compliance:
      • RF: FCC Part 15, Industry Canada, RoHS
      • Power Supply Compliance: RoHS, WEEE, UL, PSE, CE, CUL, TUV, CB compliant
