Blackmagic Design CONVMSYNC
Sync Generator Mini Converter

OUR PART #:  CONVMSYNC

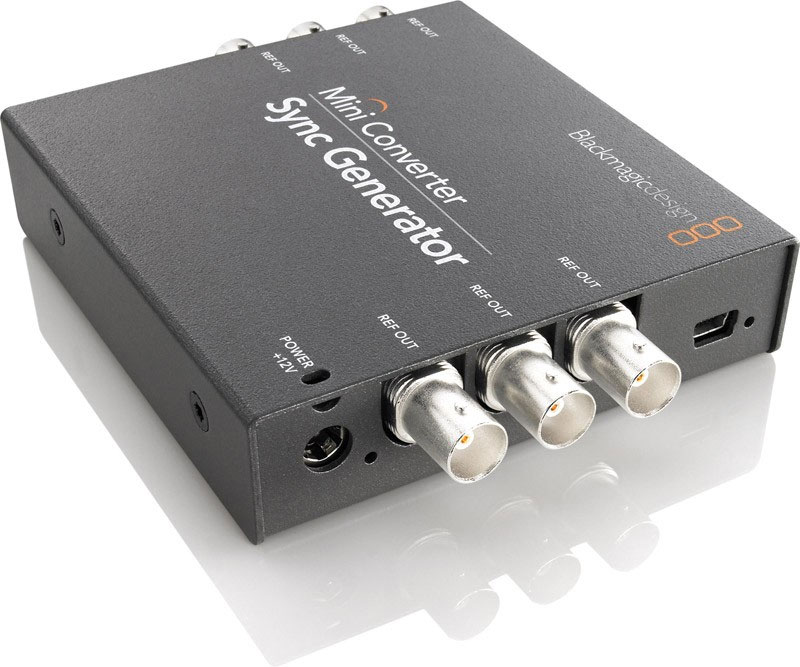

Sync Generator Mini Converter - Top View
Sync Generator Mini Converter - Bottom View
Sync Generator Mini Converter

Click a thumbnail to see more images. (5 total)

Our Price: $185.25
List Price: $195.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CONVMSYNC
Qty:
In Stock

Similar Products

Blackmagic Design's Mini Converter Sync Generator includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri-Sync or standard definition Black Burst television standards.

Blackmagic Design CONVMSYNC Specifications:

  • Connections:
    • SDI Video Output: None
    • Analog Video: 6 x common reference outputs.
    • Analog Audio: None
    • AES/EBU Digital Audio: None
    • Multi Rate Support: Via mini switches
    • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
    • Reclocking: None
  • Standards:
    • SDI Compliance: None
    • SDI Video Rates: None
    • SDI Video Sampling: None
    • SDI Audio Sampling: None
    • SDI Color Precision: None
    • SDI Color Space: None
    • SDI Auto Switching: None
    • SDI Format Support: None
    • Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94,720p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 1080p23.98,1080p24, 1080p25, 1080p29.97, 1080p30.
    • Analog Color Space: None
    • Analog Color Precision: None
  • Extras:
    • Software Control: Mac OS X™ and Windows™ software upgrade viaUSB.
    • Internal Software Upgrade: Via included updater application.
    • Settings Control: Mini Switches or USB software.
    • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
    • Power Consumption: 3.00 Watts
    • Operational Voltage Range: 12V
    • Product Warranty: 3 Year Limited Manufacturer's Warranty
