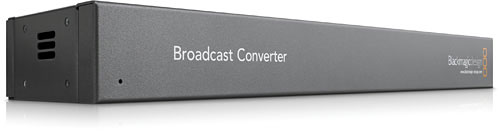

Blackmagic Design CONVBR
Broadcast Converter

OUR PART #:  CONVBR

Broadcast Converter combines most mini converters features into a 1 rack unit chassis that allows bi-direction conversion.
Learn More
Sale Price: $397.22
List Price: $995.00
You save 60%!
Write the first review.
Blackmagic Design CONVBR
Qty:
In Stock
Similar Products

Broadcast Converter combines most mini converters features into a 1 rack unit chassis that allows bi-direction conversion. Convert SDI to analog/HDMI while at the same time converting analog to HDMI to SDI. Broadcast Converter is a complete solution for connecting analog decks such as Betacam SP to SDI based systems in a compact rack mount design.

Connections

  • SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI
  • SDI Redundant Input: None
  • SDI Video Outputs: Switchable between SD, HD and 3 Gb/s SDI
  • Dual Rate Support: Auto detection of HD or standard definition SDI inputs. Simultaneous routing of both HD and standard definition video
  • Updates and Configurations: Via USB 2.0 high speed (480 Mb/s)
  • Re-clocking: None
  • Analog Audio: Standard 1/4" jack connections
  • Digital Audio: None
  • HDMI: HDMI in and out
  • Analog Video: Component, NTSC, PAL and S-Video

Standards

  • SD Format Support: 625/25 PAL and 525/29.97 NTSC
  • HD Format Support: 1080p24, 1080p25, 1080p30, 1080i48, 1080i50, 1080i59.94, 720p30, 720p50, 720p59.94 and 720p60
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
  • SDI Video Sampling: 4:2:2
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD SDI
  • SDI Color Precision: 4:2:2 and 4:4:4 10 bit when using 2 routes
  • SDI Color Space: YUV
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI

Extras

  • Software Control: Mac OS X and Windows software upgrade via USB
  • Settings Control: Via USB software
  • Firmware Upgrade: Via included firmware updater application
  • Power Supply: +12V universal power supply included. Cable tie point
