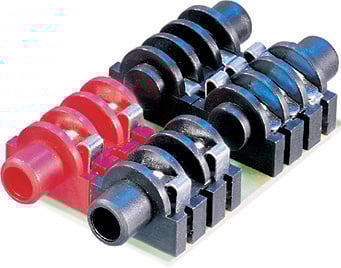

Neutrik NYS-SPCR1
Send/Return Module (with Switching Contacts for NYS-SPP-L1)

OUR PART #:  NYS-SPCR1

Module with switching contacts for NYS-SPP-L1.  Solution for insert jack of mixing consoles, Split print by-passes the use of a special wired Y-Cable.
Learn More
Our Price: $2.37
List Price: $3.10
Save up to 36% when you order by quantity!
  • Buy 25: $2.14 each.
  • Buy 50: $2.06 each.
  • Buy 100: $1.99 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NYS-SPCR1
Qty:
Similar Products

Module with switching contacts for NYS-SPP-L1.  Solution for insert jack of mixing consoles, Split print by-passes the use of a special wired Y-Cable.

Specifications:

  • Connector Type: Patch Panel
  • Signal Type: AES/EBU Signals (digital)
  • Contact resistance: < 10 mOhm
  • Dielectric strength: 1 kVdc
  • Frequency range: DC to > 50 MHz
  • Insulation resistance: > 1 GOhm @ 500 V dc
  • Channel separation: > 100 dB @ 10 kHz, 600 terminated
    > 40 dB @ 6 MHz, 110 terminated
  • Handles Phantom Power: Yes
  • Insertion force: < 20 N
  • Withdrawal force: > 10 N
  • Lifetime: > 10000 mating cycles
  • Locking device: Retention spring
  • Contacts:Bronze, tin plated (Jacks)
  • Contacts: Bronze, tin plated (Switch contacts)
  • Shell: ABS (Jacks)
  • Temperaturerange: -30 °C to +80 °C
  • Mating plug: A-Gauge 1/4'' plug acc. EIA RS-453
  • Channels: Send /Return module (Split Print)
