JBL VRX932LA-1
12" 1600W Two-Way Line Array Speaker

OUR PART #:  VRX932LA-1

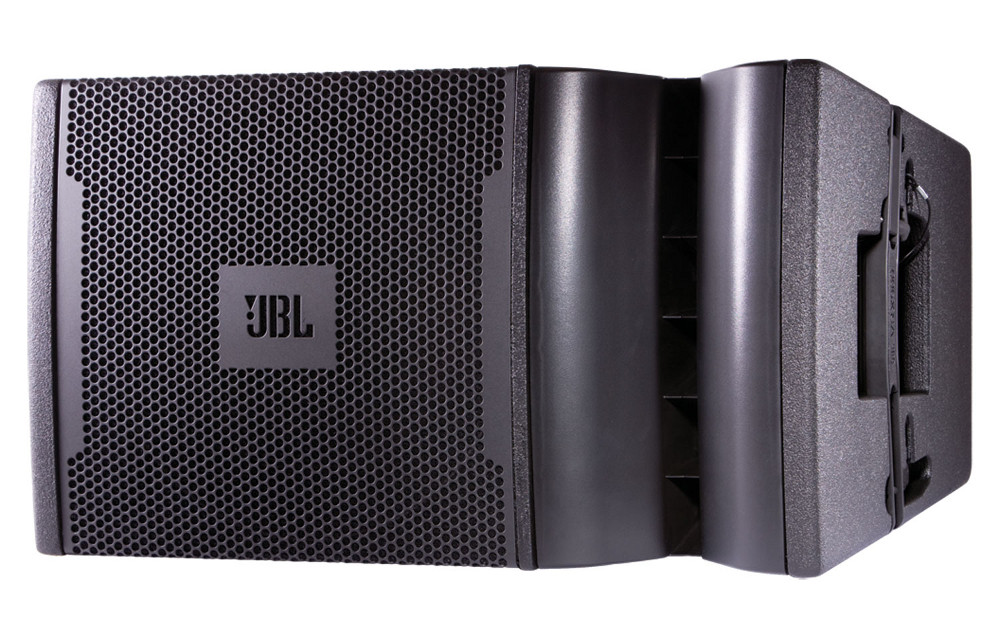

The JBL VRX932LA-1 is a 46 lb, light-weight, compact 12" two-way line array speaker system designed for use in arrays of up to six units.
Learn More
Our Price: $2,199.00
List Price: $2,759.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL VRX932LA-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL VRX932LA-1 is a 46 lb, light-weight, compact 12" two-way line array speaker system designed for use in arrays of up to six units.  An ideal choice when line array performance is needed, but the venue size doesn’t call for the long-throw characteristics inherent in larger line arrays.  The Constant Curvature waveguide mounts three compression drivers on a continuous arc.  When additional VRX932LA-1's are added to the array, the uninterrupted arc continues.  The VRX932LA-1 uses “amplitude shading” to shape the coverage of the array.  Switches on the input plate allow, for example, the upper box in an array to reach the top balcony, while the lower HF section is shaded back to reduce excessive level at the front of the listening area.

One or two VRX932LA-1's may also be used on a tripod or over subwoofers.  The integral rigging hardware is used to securely lock the array together while the dual-angle pole socket provides aiming flexibility.

As many as six VRX932LA-1 speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90°. Suspended applications require the JBL VRX-AF array frame (available separately).  For applications in which the array must be aimed sharply down, a second array frame may be installed to the bottom of the array serving as a pull-back.  VRX918S subwoofers are the ideal choice for a ground-stacked or flown VRX932LA-1 system.  The SRX718S subwoofer is also compatible when suspension is not required.

JBL VRX932LA-1 Features:

  • JBL's exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
  • The VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers.
  • Integral rigging hardware for simple connection of enclosures and optional (sold separately ) array frame.

JBL VRX932LA-1 Specifications:

  • Power Rating:
    • 800 W (Pink Noise)
    • 1600 W (Program)
    • 3200 W (Peak)
  • Frequency Range (-10 dB): 57 Hz - 20 kHz
  • Dimensions: 13.5" H x 23.5" W x 14.8" D (343 x597 x 376 mm)
  • Frequency Response (+/-3db): 75 Hz - 20 Hz
  • Coverage Pattern: 100 x 15 nominal
  • Crossover Modes: Bi-amp / passive, externally switchable
  • Crossover Frequency: 132 dB SPL peak 1.2 kHz
  • System Maximum SPL: Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
  • System Sensitivity (1w @ 1m):
    • Passive: 95 dB SPL
    • Bi-amp LF: 95 dBSPL
    • Bi-amp HF:114 dB SPL
  • LF Driver: 1x JBL 2262H, 12" (305 mm) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
  • HF Driver: 3x JBL 2408J, 1.5" (38 mm) voice-coil, neodymium compression driver
  • Nominal Impedance:
    • Passive: 8 ohm
    • Bi-amp LF: 8 ohm
    • Bi-amp HF: 8 ohm
  • Enclosure: 18 mm, 11-ply birch plywood
  • Suspension / Mounting: OptionalVRX932LA-AF line array frame kit
  • Finish: Black DuraFlex™ finish
  • Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam
  • Input Connectors: Neutrik® Speakon® NL-4 (x2)
  • Net Weight: 46 lbs. (21 kg)
  • OptionalAccessories:
    • VRX-AF: Suspension array frame
    • SS2-BK:Tripod speaker stand
    • SS3-BK: Satellite speaker pole, 41" (1041mm)
    • SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
