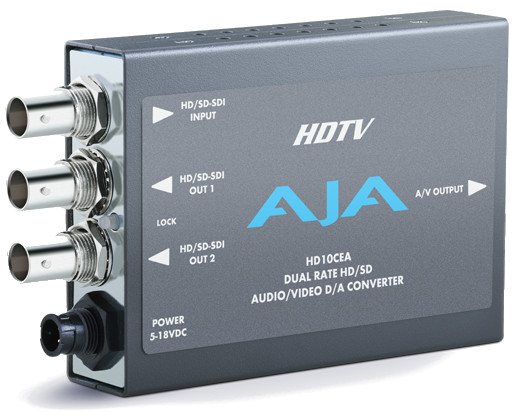

AJA Video Systems Inc HD10CEA
SD/HD-SDI to Analog Audio/Video Mini Converter with Power Supply

OUR PART #:  HD10CEA

The AJA HD10CEA converts SDI/HD-SDI video with embedded audio to analog video and 4 channel balanced analog audio.
Learn More
Our Price: $695.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HD10CEA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA HD10CEA converts SDI/HD-SDI video with embedded audio to analog video and 4 channel balanced analog audio. SD video outputs can be configured as YPbPr (Betacam or SMPTE/EBU-N10), RGB, composite or YC (S-Video). HD video outputs can be configured as YPbPr or RGB. The analog audio outputs can be sired in a balanced or unbalanced configuration. The 4 audio channels can be selected from group 1-4. Audio and video output connections are available on a 25 pin "D" subminiature connector (breakout cable supplied). All video/audio configuration is done by external dipswitch selection. This versatile miniature monitoring solution also outputs two loop-thru SDI/HD-SDI outputs.

AJA HD10CEA SD/HD-SDI to Analog Audio/Video Mini Converter Features:

  • Digital to Analog Audio and Video Converter
  • SDI/HD-SDI with Embedded Audio Input
  • SD Component or Composite Video Outputs (SD Input)
  • HD Component Video Outputs (HD Input)
  • 4 Channel Balanced Audio Output
  • 2 Equalized, Loop-Thru SD/HD-SDI Outputs
  • Selectable Audio Channel Pair/Group
  • Power supply included

AJA HD10CEA SD/HD-SDI to Analog Audio/Video Mini Converter Specifications:

  • Inputs: SDI/HD-SDI with Embedded Audio, 1x BNC
  • Video Inputs:
    • SD Video: YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL, YC (S-Video)
    • HD Video: YPbPr, RGB
  • Audio: 4 channel balanced/unbalanced
  • Video/Audio Outputs on 25-pin D connector
  • 2 SDI/HD-SDI Equalized Loop-Thru, 2x BNC
  • User Controls:
    • External dipswitch
    • Video Format
    • Pedestal
    • H/V Blanking
    • Audio Group 1-4
    • Audio Level (adjustable via switch selection): +24, +18, +15, +12 dBu, Full Scale Digital
  • Size: 5.8" x 3.1" x 1"
  • Power: +5-18VDC, Regulated, 4 Watts, Requires Power Supply (included)
