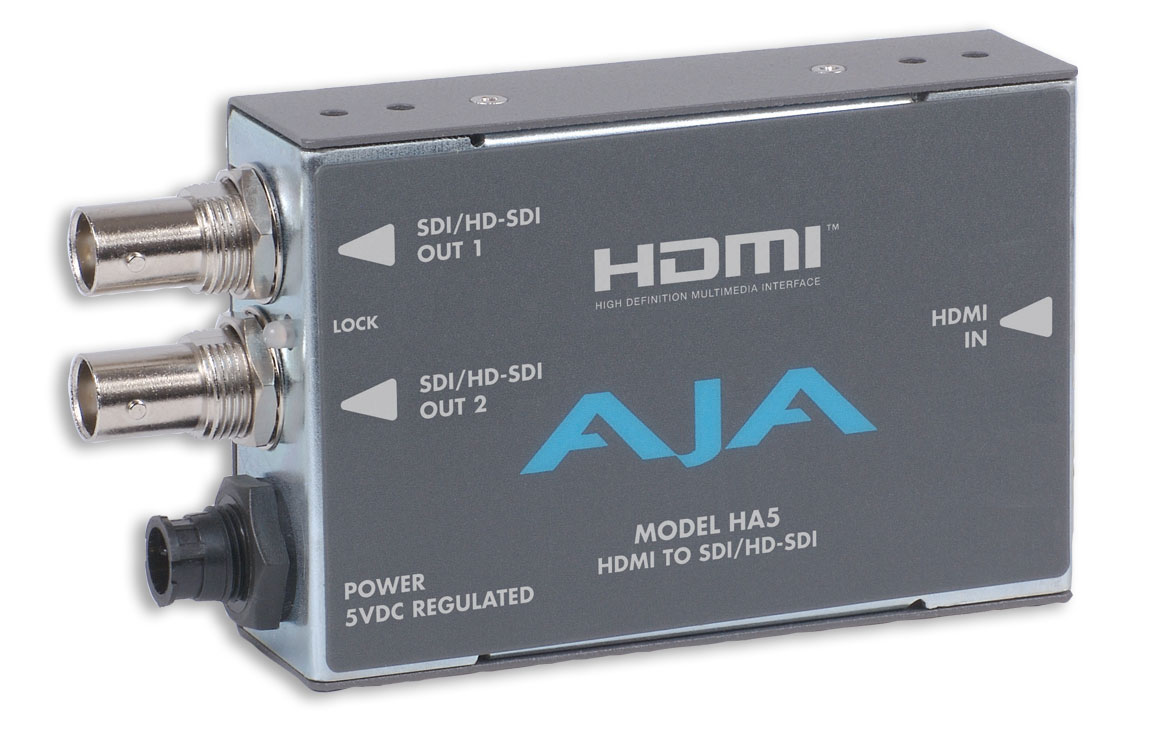

AJA Video Systems Inc HA5
HDMI to SD/HD-SDI Video and Audio Mini Converter with Power Supply

OUR PART #:  HA5

The AJA HA5 converts HDMI to SDI or HD-SDI and features up to eight channels of HDMI audio are embedded into the SDI/HD-SDI output...
Learn More
Our Price: $345.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HA5
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA HA5 converts HDMI to SDI or HD-SDI and features up to eight channels of HDMI audio are embedded into the SDI/HD-SDI output, allowing a convenient single cable audio/video connection. The HA5 also features two SDI/HD-SDI outputs and supports long HDMI cables on the input. The HA5 is great for connecting HDMI cameras to SDI/HD-SDI equipment.

AJA HA5 Features:

  • Full HDMI support including embedded audio
  • Equalized HDMI input supports long HDMI cables up to 40m
  • PLL clock filtering for low jitter SDI/HD-SDI outputs
  • Lock LED shows type of input source, SD (green) or HD (red)
  • HDMI cable and power supply included
  • 5 year warranty

AJA HA5 Specifications:

  • Input: HDMI with embedded audio
  • Input Formats: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98,1080p24, 1080p25, 1080p29.97, and 1080p30
  • Outputs: SMPTE-259/292/296 SDI/HD-SDI, 2 x BNC
  • Power: +5VDC Regulated, 4 Watts, Requires the use of the included power supply
  • Dimensions: 4.6" x 2.4" x 1"
