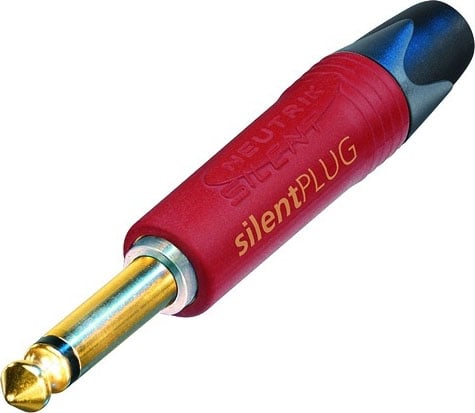

Neutrik NP2X-AU-SILENT
2-Pole 1/4" Plug (Self-Muting, Gold-Plated Contacts)

OUR PART #:  NP2X-AU-SILENT

Special version of the 2-pole plug with integrated switch which automatically mutes (shorts) a guitar cable to avoid annoying pops and squeals when hot-swapping guitars.
Learn More
Our Price: $9.17
List Price: $13.13
Save up to 41% when you order by quantity!
  • Buy 25: $8.28 each.
  • Buy 50: $7.99 each.
  • Buy 100: $7.69 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NP2X-AU-SILENT
Qty:
Similar Products

Special version of the 2-pole plug with integrated switch which automatically mutes (shorts) a guitar cable to avoid annoying pops and squeals when hot-swapping guitars.  The integrated silent switch is based on the REED technology and guarantees a lifetime beyond 10,000 mating cycles.

Features:

  • Hermetically sealed and magnetically operated switch
  • No wear, constant contact resistance
  • No corrosion or pollution of switch, durable and long-lasting
  • Lifetime beyond 10,000 mating cycles
  • Red rubber overlay

Specifications:

  • Connector Type: Plug
  • Gender: male
  • Contact resistance: depends on mating connector mOhm
  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 2 GOhm (initial)
  • Insulation resistance: >/=1 GOhm (after damp heat test)
  • Rated current per contact: </= 15 A
  • Cable O.D.:4-7 mm
  • Wire size: 1 mm²
    18 AWG
  • Wiring: Soldercontacts
  • Bushing: Polyacetal (POM) + PU
  • Contact plating: 0.2 µm Au
  • Contacts: Brass
  • Insert:Polyamide (PA 6.6 30 % GR)
  • Shell: Brass
  • Shell:Rubber overlay (EPDM)
  • Strain relief: Polyacetal (POM)
  • Labeling: no
  • Standardcompliance: IEC 60603-11 / EIA RS-453
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -20 °C to +65 °C

NOTE: Signal is not muted with active electric bass guitars which have a tip-ring-sleeve tap to activate the power supply.
