Shure PA805X
Antenna Wide Band 944-952


Our Price: $254.02
List Price: $284.00
You save 11%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

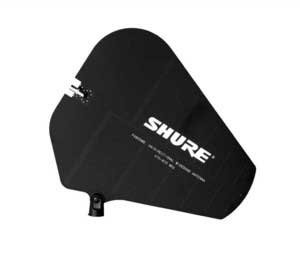

The PA805 directional antenna for PSM wireless systems is a directional antenna for increased range and reduced interference as compared to omnidirectional 1/2-wave antennas. It can be mounted on a microphone stand or mounted to a wall using the integral swivel adapter bracket.


  • Frequency Range: 944-952 MHz
  • Antenna Gain: 6dBi Typical
  • Radiation Pattern: directional; cardioid
  • Connector: 50 W, Female, BNC-type
  • Swivel Adapter: Positive-action, break resistant, adjustable from 0 to 90 degrees, with standard 5/8 in. -27 thread
  • Dimensions: 226 mm H X 234 mm W X 40.6 mm D (8.9 in. H X 9.21 in. W X 1.60 in. D)
  • Net Weight: 8 oz (227 grams)
